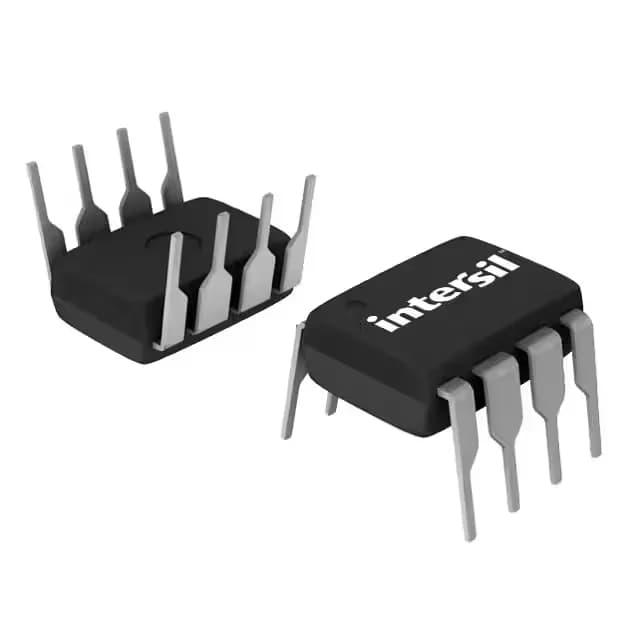

ICL7660ACPAZ
Renesas Electronics America Inc
Tube0°C~70°C(TA)3kHz
Ref. price$2.0300
Lead time on requestGet quote ›
Renesas Electronics ICL766 Series
22 variants · Renesas Electronics
About the Renesas Electronics Renesas Electronics ICL766 Series series
The Renesas Electronics Renesas Electronics ICL766 Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - output of 45mA, function of Ratiometric and number of outputs of 1. Variants differ by case, frequency and mounting type, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-SOIC (0.154\", 3.90mm Width)
- Frequency
- 3kHz · 10kHz · 10kHz ~ 35kHz
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA) · 0°C ~ 70°C (TA) · 0°C~70°C(TA)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage - input
- 10V · 12V
Variant comparison
| Parameter | ICL7660ACPAZ | ICL7660AIBAZA-T | ICL7660CBAZA-T | ICL7660CBAZ-T | ICL7660CPAZ | ICL7660SCBAZ |
|---|---|---|---|---|---|---|
| Case | 8-DIP (0.300\", 7.62mm) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-DIP (0.300\", 7.62mm) | 8-SOIC (0.154\", 3.90mm Width) |
| Frequency | 3kHz | 3kHz | 10kHz | 10kHz | 10kHz | 10kHz ~ 35kHz |
| Mounting type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Operating temperature | 0°C~70°C(TA) | -40°C~85°C(TA) | 0°C~70°C(TA) | 0°C~70°C(TA) | 0°C~70°C(TA) | 0°C~70°C(TA) |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
| Voltage - input | 12V | 12V | 10V | 10V | 10V | 12V |
Shared specifications
- Current - output
- 45mA
- Function
- Ratiometric
- Number of outputs
- 1
- Output configuration
- Positive or Negative
- Output type
- Fixed
- Synchronous rectifier
- No
- Topology
- Charge Pump
- Voltage - output
- -
- Voltage - output (Min (Fixed))
- -Vin, 2Vin
Request a quote on any Renesas Electronics ICL766 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
