EEF-GX0D331R
Panasonic Electronic Components
330 µFTape & Reel (TR) Cut Tape (CT)-55°C ~ 105°C
Ref. price$1.7300
Lead time on requestGet quote

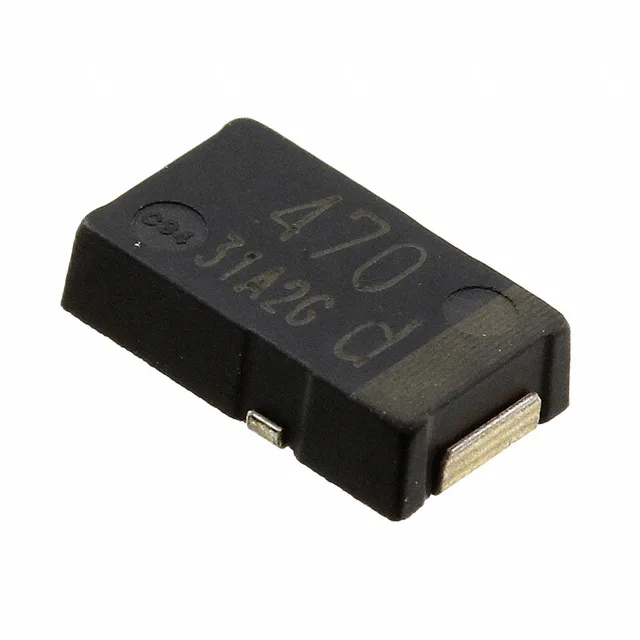

Panasonic Electronic Components EEFG Series
8 variants · Panasonic Electronic Components
About the Panasonic Electronic Components EEFG Series
The Panasonic Electronic Components EEFG Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, case of 2917 (7343 Metric) and ESR of 3mOhm. Variants differ by capacitance, operating temperature and package, so you can match the exact capacitance your application requires using the selection guide below. All listed Panasonic Electronic Components EEFG Series part numbers are active and orderable.
Select a variant by
- Capacitance
- 330 µF · 470 µF · 560 µF
- Operating temperature
- -55°C ~ 105°C · -55°C~105°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Voltage - rated
- 2 V · 2.5 V
Shared specifications
- Applications
- General Purpose
- Case
- 2917 (7343 Metric)
- ESR
- 3mOhm
- Height - seated
- 0.079\" (2.00mm)
- Lead spacing
- -
- Lifetime
- 2000 Hrs @ 105°C
- Mounting
- Surface Mount
- Ratings
- -
- Ripple current @ high frequency
- 10.2 A @ 100 kHz
- Size (Dimension)
- 0.287\" L x 0.169\" W (7.30mm x 4.30mm)
- Surface mount land size
- 0.287\" L x 0.169\" W (7.30mm x 4.30mm)
- Tolerance
- ±20%
Variant comparison
| Parameter | EEF-GX0D331R | EEF-GX0E471L | EEF-GX0E331R | EEF-GX0D561R | EEF-GX0D561L | EEF-GX0D471R |
|---|---|---|---|---|---|---|
| Capacitance | 330 µF | 470 µF | 330 µF | 560 µF | 560 µF | 470 µF |
| Operating temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Voltage - rated | 2 V | 2.5 V | 2.5 V | 2 V | 2 V | 2 V |
Request a quote on any Panasonic Electronic Components EEFG Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
