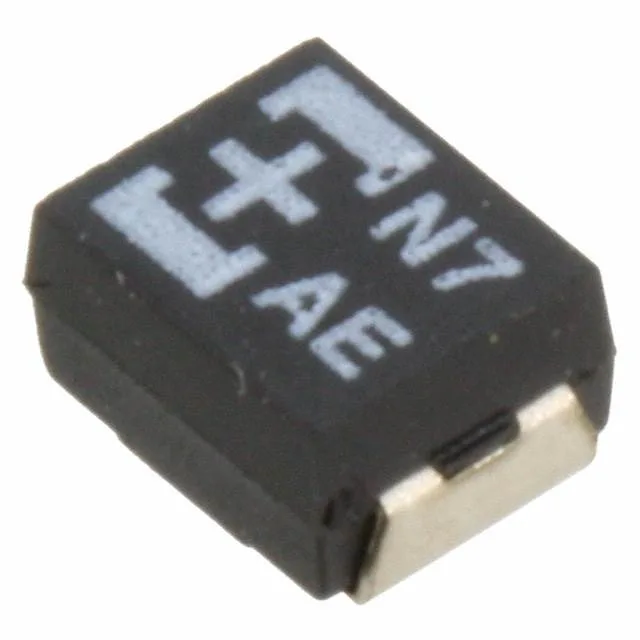

6TPB330MVL
Panasonic Electronic Components
330 µF45mOhm @ 100kHzTape & Reel (TR) Cut Tape (CT)
Ref. price$1.8200
Lead time on requestGet quote
Panasonic Electronic Components 6TPB Series
9 variants · Panasonic Electronic Components
About the Panasonic Electronic Components 6TPB Series
The Panasonic Electronic Components 6TPB Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common lead spacing of -, mounting of Surface Mount and ratings of -. Variants differ by capacitance, case and ESR, so you can match the exact capacitance your application requires using the selection guide below. All listed Panasonic Electronic Components 6TPB Series part numbers are active and orderable.
Select a variant by
- Capacitance
- 33 µF · 68 µF · 220 µF · 330 µF · 470 µF
- Case
- 1411 (3528 Metric) · 2917 (7343 Metric)
- ESR
- 35mOhm @ 100kHz · 40mOhm @ 100kHz · 45mOhm @ 100kHz · 50mOhm @ 100kHz · 70mOhm @ 100kHz
- Height - seated
- 0.079\" (2.00mm) · 0.118\" (3.00mm) · 0.157\" (4.00mm)
- Lifetime
- - · 1000 Hrs @ 105°C · 2000 Hrs @ 105°C
- Manufacturer size code
- B2 · D3L · D4
- Operating temperature
- -55°C ~ 105°C · -55°C~105°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Shared specifications
- Lead spacing
- -
- Mounting
- Surface Mount
- Ratings
- -
- Tolerance
- ±20%
- Type
- Molded
- Voltage - rated
- 6.3 V
Variant comparison
| Parameter | 6TPB330MVL | 6TPB330ML | 6TPB330MAL | 6TPB330M | 6TPB68M | 6TPB220MTL |
|---|---|---|---|---|---|---|
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF | 68 µF | 220 µF |
| Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric) | 2917 (7343 Metric) |
| ESR | 45mOhm @ 100kHz | 40mOhm @ 100kHz | 40mOhm @ 100kHz | 40mOhm @ 100kHz | 70mOhm @ 100kHz | 50mOhm @ 100kHz |
| Height - seated | 0.118\" (3.00mm) | 0.118\" (3.00mm) | 0.118\" (3.00mm) | 0.157\" (4.00mm) | 0.079\" (2.00mm) | 0.118\" (3.00mm) |
| Lifetime | 2000 Hrs @ 105°C | - | - | - | - | 2000 Hrs @ 105°C |
| Manufacturer size code | D3L | D3L | D3L | D4 | B2 | D3L |
| Operating temperature | -55°C ~ 105°C | -55°C~105°C | -55°C~105°C | -55°C~105°C | -55°C ~ 105°C | -55°C~105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Request a quote on any Panasonic Electronic Components 6TPB Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
