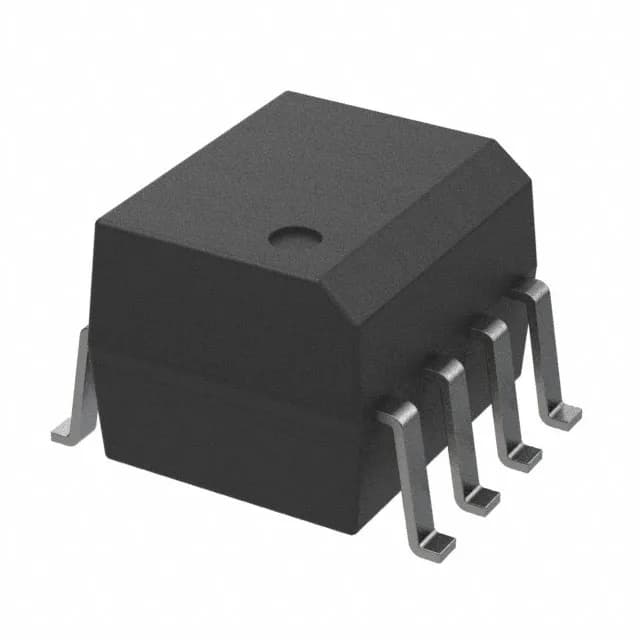

MOCD223VM
onsemi
TubeDarlingtonSurface Mount
Ref. price$1.91
Lead time on requestGet quote
onsemi MOCD Optoisolators Series
2 variants · onsemiAll Optoisolators →
About the onsemi MOCD Optoisolators Series
ICBOMS is a China IC distributor and semiconductor supplier — an independent, Shenzhen-based overseas procurement agent for onsemi MOCD Optoisolators Series components — sourcing onsemi MOCD Optoisolators Series parts new and original only, across the authorized and vetted independent channel, with every lot authenticity-screened before shipment. The onsemi MOCD Optoisolators Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of 8-SOIC (0.154\", 3.90mm Width), channels of 2 and current - DC forward (If) of 60 mA. Variants differ by current transfer ratio, output type and package, so you can match the exact current transfer ratio your application requires using the selection guide below. All listed onsemi MOCD Optoisolators Series part numbers are active and orderable.
Select a variant by
- Current transfer ratio
- 125% @ 10mA · 500% @ 1mA
- Output type
- Darlington · Transistor
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Rise (Fall time)
- 3.2µs, 4.7µs · 8µs, 110µs
- Turn on (Turn off time)
- 7.5µs, 5.7µs · 10µs, 125µs
- Vce saturation
- 1V · 400mV
- Voltage - output
- 30V · 70V
Shared specifications
- Case
- 8-SOIC (0.154\", 3.90mm Width)
- Channels
- 2
- Current - DC forward (If)
- 60 mA
- Current - output (Channel)
- 150mA
- Input type
- DC
- Mounting
- Surface Mount
- Operating temperature
- -40°C ~ 100°C
- Voltage - forward (Vf)
- 1.25V
- Voltage - isolation
- 2500Vrms
Variant comparison
| Parameter | MOCD223VM | MOCD208R2M |
|---|---|---|
| Current transfer ratio | 500% @ 1mA | 125% @ 10mA |
| Output type | Darlington | Transistor |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Rise (Fall time) | 8µs, 110µs | 3.2µs, 4.7µs |
| Turn on (Turn off time) | 10µs, 125µs | 7.5µs, 5.7µs |
| Vce saturation | 1V | 400mV |
| Voltage - output | 30V | 70V |
Request a quote on any onsemi MOCD Optoisolators Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
