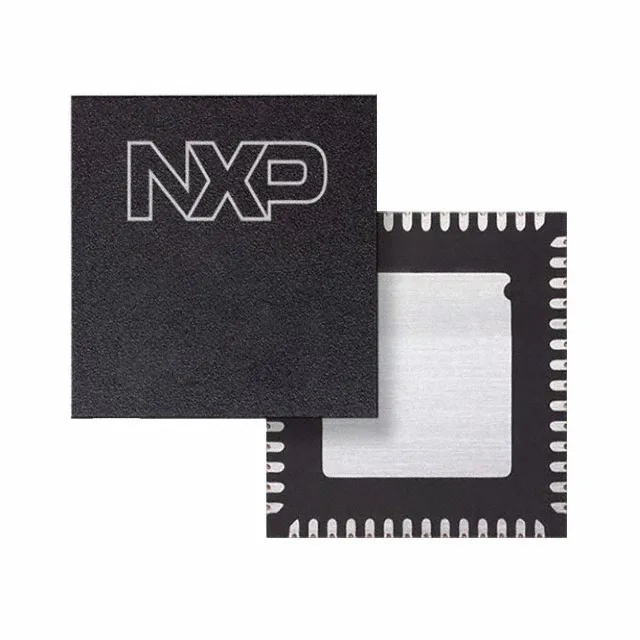

TJA1102AHN/0Z
NXP Semiconductors
Tape & Reel (TR); Cut Tape (CT)-40°C ~ 125°CEthernet
Ref. price$6.48
Lead time on requestGet quote
NXP Semiconductors TJA1 Dc Dc Modules Series
3 variants · NXP Semiconductors
About the NXP Semiconductors TJA1 Dc Dc Modules Series
The NXP Semiconductors TJA1 Dc Dc Modules Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount, package of Tape & Reel (TR); Cut Tape (CT) and type of Transceiver. Variants differ by case, duplex and number of drivers (Receivers), so you can match the exact case your application requires using the selection guide below. All listed NXP Semiconductors TJA1 Dc Dc Modules Series part numbers are active and orderable.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 14-VDFN Exposed Pad · 56-VFQFN Exposed Pad
- Duplex
- Full · Half
- Number of drivers (Receivers)
- 1/1 · 2/2
- Operating temperature
- -40°C ~ 125°C · -40°C ~ 150°C
- Protocol
- CANbus · Ethernet
- Voltage
- 1.8V, 3.3V · 4.75V ~ 5.25V
- Data rate
- 5Mbps · 100Mbps
Shared specifications
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Type
- Transceiver
Variant comparison
| Parameter | TJA1044GT/3Z | TJA1059TKJ | TJA1102AHN/0Z |
|---|---|---|---|
| Case | 8-SOIC (0.154\", 3.90mm Width) | 14-VDFN Exposed Pad | 56-VFQFN Exposed Pad |
| Duplex | Half | Half | Full |
| Number of drivers (Receivers) | 1/1 | 2/2 | 2/2 |
| Operating temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Protocol | CANbus | CANbus | Ethernet |
| Voltage | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 1.8V, 3.3V |
| Data rate | 5Mbps | — | 100Mbps |
Request a quote on any NXP Semiconductors TJA1 Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
