PCF85063AT/AY
NXP USA Inc.
0.9V ~ 5.5VTape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C
Ref. price$1.0100
Lead time on requestGet quote ›
NXP Semiconductors PCF85 Series
15 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors PCF85 Series series
The NXP Semiconductors NXP Semiconductors PCF85 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common date format of YY-MM-DD-dd, mounting type of Surface Mount and type of Clock/Calendar. Variants differ by case, current - timekeeping and features, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-VDFN Exposed Pad · 8-WFDFN Exposed Pad · 10-VFDFN Exposed Pad · 10-XFDFN Exposed Pad · 14-TSSOP (0.173\", 4.40mm Width)
- Current - timekeeping
- 0.5µA @ 2V ~ 5V · 0.6µA @ 3.3V · 0.6µA ~ 0.75µA @ 2V ~ 5V · 0.885µA @ 3.3V · 8µA ~ 15µA @ 2V ~ 5V
- Features
- Alarm, Leap Year, Square Wave Output · Alarm, Leap Year, Watchdog Timer · Alarm, NVSRAM
- Interface
- I²C, 2-Wire Serial · SPI
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Time format
- HH:MM:SS (12/24 hr) · HH:MM:SS (24 hr) · HH:MM:SS:hh (12/24 hr)
- Voltage
- 0.9V ~ 5.5V · 1V ~ 5.5V · 1.6V ~ 5.5V · 2.5V ~ 6V
Variant comparison

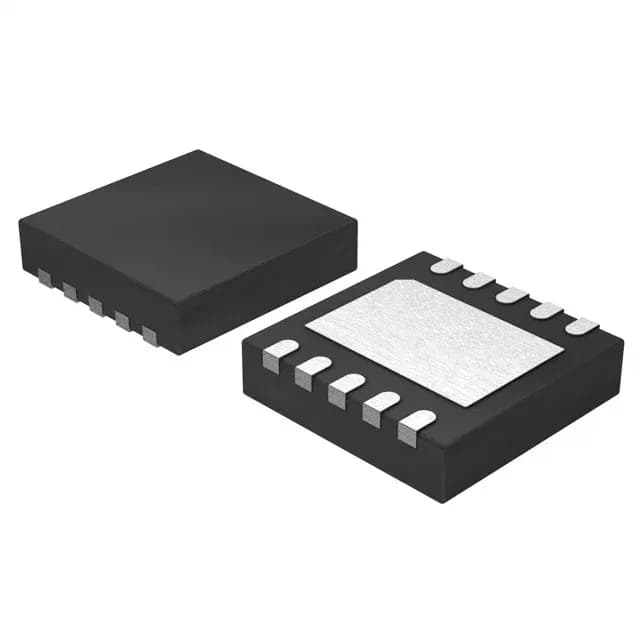

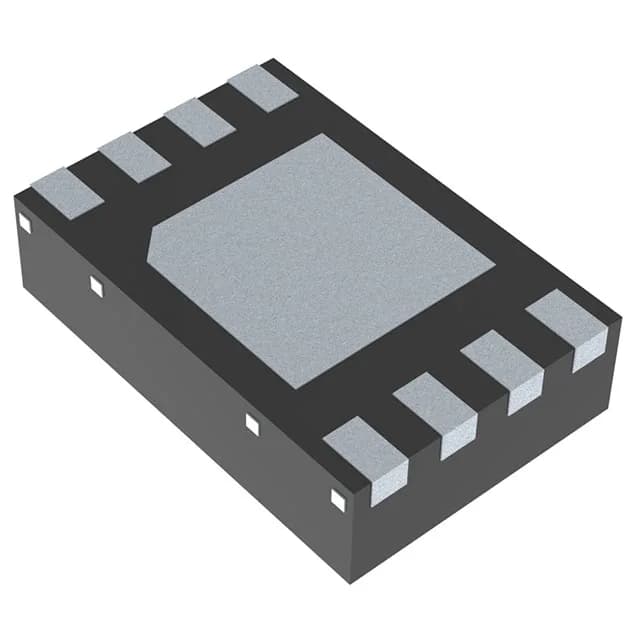

| Parameter | PCF85063AT/AY | PCF85063ATL/1,118 | PCF85063ATT/AJ | PCF85063BTL/1,118 | PCF85063TP/1Z | PCF8523TK/1,118 |
|---|---|---|---|---|---|---|
| Case | 8-SOIC (0.154\", 3.90mm Width) | 10-XFDFN Exposed Pad | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 10-XFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-VDFN Exposed Pad |
| Current - timekeeping | 0.6µA @ 3.3V | 0.6µA @ 3.3V | 0.6µA @ 3.3V | 0.6µA @ 3.3V | 0.6µA @ 3.3V | 0.5µA @ 2V ~ 5V |
| Features | Alarm, Leap Year, Square Wave Output | Alarm, Leap Year, Square Wave Output | Alarm, Leap Year, Square Wave Output | Alarm, Leap Year, Square Wave Output | Alarm, Leap Year, Square Wave Output | Alarm, Leap Year, Watchdog Timer |
| Interface | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial | SPI | I²C, 2-Wire Serial | I²C, 2-Wire Serial |
| Operating temperature | -40°C ~ 85°C | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Time format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Voltage | 0.9V ~ 5.5V | 0.9V ~ 5.5V | 0.9V ~ 5.5V | 0.9V ~ 5.5V | 0.9V ~ 5.5V | 1.6V ~ 5.5V |
Shared specifications
- Date format
- YY-MM-DD-dd
- Mounting type
- Surface Mount
- Type
- Clock/Calendar
Request a quote on any NXP Semiconductors PCF85 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors PCF85 Series variants differ?
- NXP Semiconductors PCF85 Series part numbers differ by case, current - timekeeping, features and interface. Use the selection guide above to pick by case.
- How many NXP Semiconductors NXP Semiconductors PCF85 Series part numbers are listed?
- 15 NXP Semiconductors NXP Semiconductors PCF85 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors PCF85 Series?
- Request a quote (RFQ) for any NXP Semiconductors PCF85 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
