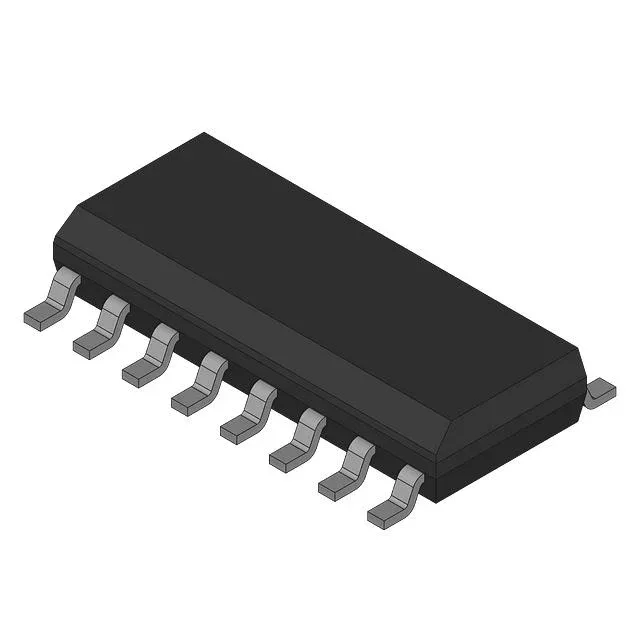

74HC4017D,652
NXP Semiconductors
74HCBulk-40°C ~ 125°C
Ref. price$0.25
Lead time on requestGet quote
NXP Semiconductors 74HC Dc Dc Modules Series
6 variants · NXP Semiconductors
About the NXP Semiconductors 74HC Dc Dc Modules Series
The NXP Semiconductors 74HC Dc Dc Modules Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount and package of Bulk. Variants differ by case, logic type and operating temperature, so you can match the exact case your application requires using the selection guide below. All listed NXP Semiconductors 74HC Dc Dc Modules Series part numbers are active and orderable.
Select a variant by
- Case
- 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-XFDFN · 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 16-SOIC (0.154\", 3.90mm Width)
- Logic type
- Binary Counter · Buffer, Non-Inverting · Counter, Decade · Inverter · NAND Gate · XNOR (Exclusive NOR)
- Operating temperature
- -40°C ~ 125°C · -40°C ~ 125°C (TA)
- Voltage
- 2 V ~ 6 V · 2V ~ 6V · 4.5 V ~ 5.5 V · 4.5V ~ 5.5V
- Current - output high, low
- -, 4mA · 4mA, 4mA · 5.2mA, 5.2mA
- Current - quiescent
- 1 µA · 2 µA
- I/O channels
- 2 · 3
Shared specifications
- Mounting
- Surface Mount
- Package
- Bulk
Variant comparison
| Parameter | 74HC3G04DP,125 | 74HC4017D,652 | 74HC7266D/S410118 | 74HCT03PW,118 | 74HCT3G34GD,125 | 74HCT4520D,118 |
|---|---|---|---|---|---|---|
| Case | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 8-XFDFN | 16-SOIC (0.154\", 3.90mm Width) |
| Logic type | Inverter | Counter, Decade | XNOR (Exclusive NOR) | NAND Gate | Buffer, Non-Inverting | Binary Counter |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Voltage | 2V ~ 6V | 2 V ~ 6 V | 2V ~ 6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5 V ~ 5.5 V |
| Current - output high, low | 5.2mA, 5.2mA | — | 5.2mA, 5.2mA | -, 4mA | 4mA, 4mA | — |
| Current - quiescent | 1 µA | — | 2 µA | 2 µA | — | — |
| I/O channels | 3 | — | 2 | 2 | — | — |
Request a quote on any NXP Semiconductors 74HC Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
