NXP USA Inc. MKL26Z32VFM4 — Microcontrollers & Processors (MCU / MPU / DSP)
NXP USA Inc.

NXP MKL26Z32VFM4 Kinetis KL2 MCU, 48MHz, 32KB Flash

MPNMKL26Z32VFM4
Active

NXP Kinetis KL2 series 32-bit ARM Cortex-M0+ MCU, MKL26Z32VFM4, 48MHz, 32KB Flash, 4K x 8 RAM, USB OTG, 23 I/O, 32-HVQFN (5x5 mm), -40 to 105°C.

$6.1300Ref. price · indicative, final on quote
MKL26Z32VFM4 datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MKL26Z32VFM4 Technical Specifications
ParameterValue
SeriesKinetis KL2
Mounting typeSurface Mount, Wettable Flank
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C~105°C(TA)
Speed48MHz
PackageTray
RAM size4K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT
ConnectivityI²C, LINbus, SPI, UART/USART, USB, USB OTG
Number of i (O)23
Core processorARM® Cortex®-M0+
Case32-VFQFN Exposed Pad
Data convertersA/D - 16bit; D/A - 12bit
Program memory size32KB (32K x 8)

Product details

The NXP MKL26Z32VFM4 is a 32-bit ARM Cortex-M0+ microcontroller from the Kinetis KL2 series, running at 48 MHz with 32 KB Flash and 4 KB RAM. It integrates USB OTG for dual-role device/host connectivity, plus LINbus for automotive body-node applications. The on-chip 16-bit ADC and 12-bit DAC handle sensor conditioning and analog output without external converters. Operating from -40 to 105 °C, it suits industrial motor drives, outdoor telecom gear, and under-hood automotive modules.

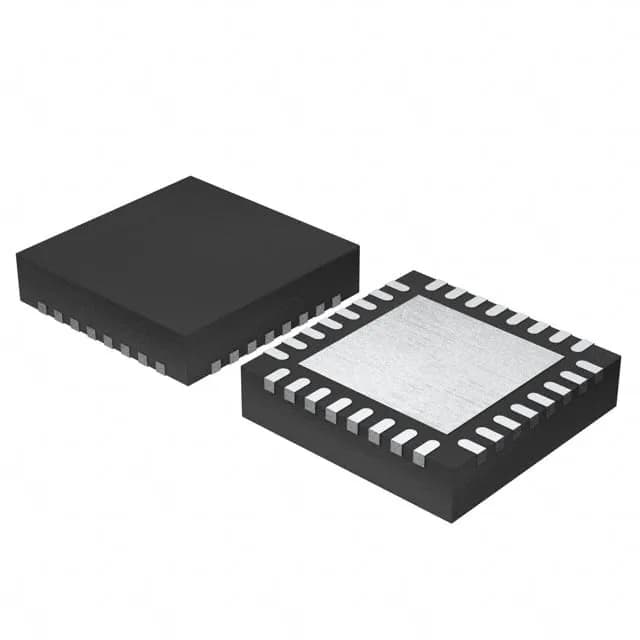

Package and mounting — 5x5 mm HVQFN with wettable flank

The 5x5 mm HVQFN package with wettable flanks supports automated optical inspection (AOI) after reflow. The 23 general-purpose I/O are routed to the exposed pad for thermal dissipation.

Frequently asked questions

What is the operating voltage and Flash size of the MKL26Z32VFM4?

The supply voltage range is 1.71 V to 3.6 V, and the program memory is 32 KB of Flash.

Can the MKL26Z32VFM4 be replaced by the MKL26Z64VFM4?

Yes, the MKL26Z64VFM4 is pin-compatible and shares the same package and peripheral set, offering 64 KB Flash as a higher-density alternative.

What is the MKL26Z32VFM4 microcontroller?

It is a 32-bit ARM Cortex-M0+ MCU from NXP's Kinetis KL2 series, running at 48 MHz with 32 KB Flash, 4 KB RAM, USB OTG, and a 16-bit ADC.
