NXP i.MX RT1060 crossover MCU, MIMXRT106ACVL5B, ARM Cortex-M7 528MHz, 32-bit single-core, 1M x 8 RAM, 127 I/O, 196-MAPBGA (10x10), -40 to 105°C.
| Parameter | Value |
|---|---|
| Series | RT1060 |
| Mounting | Surface Mount |
| Oscillator type | External, Internal |
| Program memory type | ROM |
| Voltage - supply (Vcc (Vdd)) | 3V ~ 3.6V |
| Operating temperature | -40°C ~ 105°C (TJ) |
| Speed | 528MHz |
| Package | Tray |
| RAM size | 1M x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Number of i (O) | 127 |
| Core processor | ARM® Cortex®-M7 |
| Case | 196-LFBGA |
| Data converters | A/D 20x12b |
| Program memory size | 128KB (128K x 8) |
The peripheral list covers CANbus, Ethernet, USB OTG, multiple SPI/I²C/UART, SAI (audio), SPDIF, and MMC/SD/SDIO. The LCD controller and the 20-channel 12-bit ADC are integrated, so a basic HMI or data-acquisition front-end needs no external converter.

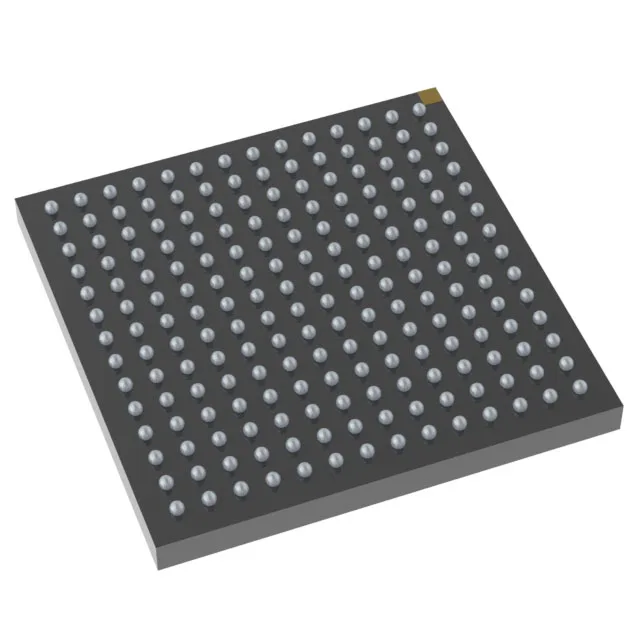

The MIMXRT106ACVL5B is supplied in a 196-MAPBGA (10x10 mm) package, surface-mount. It ships in tray packaging.
The MIMXRT1064 is a different device in the same i.MX RT1060 family. The MIMXRT106ACVL5B has 1M x 8 on-chip RAM and 128 KB ROM; the MIMXRT1064 typically integrates larger embedded Flash. Pin compatibility varies by density option — verify the specific order code against your PCB footprint before substitution.
The core processor runs at 528 MHz.
