The NXP LPC55S66JBD100K is a 32-bit ARM Cortex-M33 MCU running at 150 MHz, with 256 KB Flash and 144 KB RAM. That RAM allocation is notably deep for a mid-range MCU — it leaves room for double-buffered USB transfers, a FreeRTOS heap with several moderate-sized tasks, and a 16-bit ADC sample buffer without cramping the stack. The Cortex-M33 brings TrustZone for hardware-isolated secure regions, useful if the design needs to separate a communications stack from application code. Operating temperature spans -40 to 105 °C, so this part fits industrial motor drives, outdoor telecom pedestals, and under-hood automotive modules that see thermal cycling.

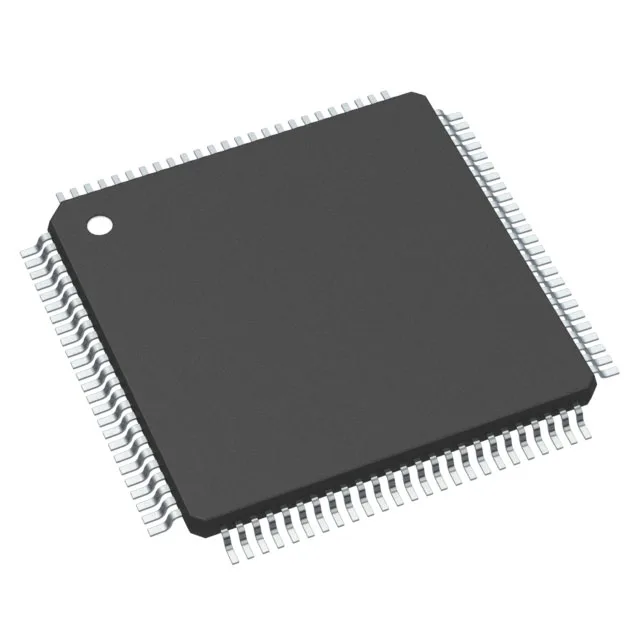

Package and rework — 100-HLQFP with exposed pad
Connectivity and peripherals — Flexcomm and USB
The Flexcomm interface can be configured as UART, I2C, or SPI per pin pair, which simplifies PCB layout when the design needs multiple serial buses but the pin count is tight. There is also a USB Full Speed peripheral, an SDIO interface for external storage, and a 10-channel 16-bit ADC. The DMA engine can move ADC results directly to RAM without CPU intervention, which matters when the 150 MHz core is busy running a control loop or a protocol stack.
