NXP LPC5534 series, ARM Cortex-M33 single-core MCU at 150MHz, 128KB Flash, 96KB RAM, 39 I/O, 64-TQFP Exposed Pad (HTQFP), -40°C to 105°C, 1.8V–3.6V supply, tray.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.8V ~ 3.6V |
| Operating temperature | -40°C ~ 105°C (TA) |
| Speed | 150MHz |
| Package | Tray |
| RAM size | 96K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | DMA, PWM, WDT |
| Connectivity | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART |
| Number of i (O) | 39 |
| Core processor | ARM® Cortex®-M33 |
| Case | 64-TQFP Exposed Pad |
| Data converters | A/D 13x16b; D/A 1x12b |
| Program memory size | 128KB (128K x 8) |
The NXP LPC5534JBD64K is a 32-bit ARM Cortex-M33 single-core MCU running at 150 MHz, with 128 KB of Flash program memory and 96 KB of RAM. The 150 MHz core speed positions this part for real-time control loops and moderate signal processing, while the 128 KB Flash and 96 KB RAM handle firmware and data buffers for industrial and embedded applications.

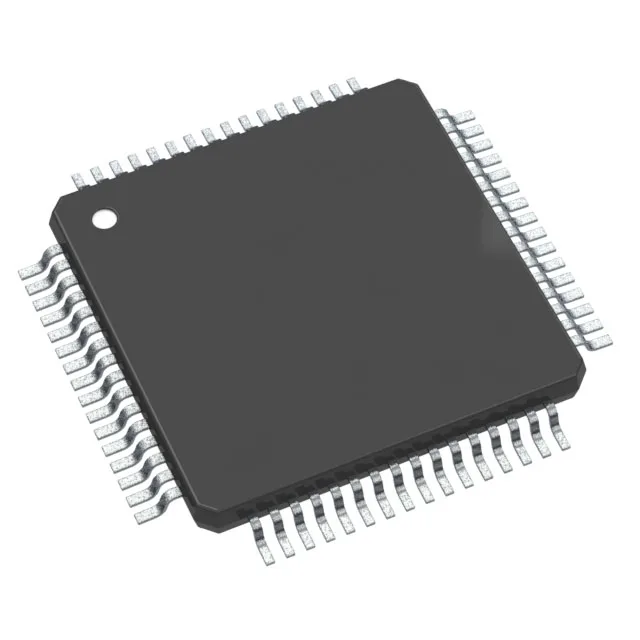

Supplied in a 64-TQFP Exposed Pad package (HTQFP 10x10 mm), surface-mount.
Key specs include a 150 MHz ARM Cortex-M33 core, 128 KB Flash, 96 KB RAM, 39 I/O, -40°C to 105°C operating range, 1.8 V to 3.6 V supply, CANbus, Flexcomm, 13x16-bit ADC, and 1x12-bit DAC in a 64-HTQFP package.
Yes, the LPC5534JBD64K includes a CANbus interface (2.0B) as part of its connectivity set.
