74LV04ATPWJ
Nexperia USA Inc.
74LVTape & Reel (TR); Cut Tape (CT)-40°C ~ 125°C
Ref. price$0.44
Lead time on requestGet quote
Nexperia USA Inc. 74LV Memory Series
12 variants · Nexperia USA Inc.
About the Nexperia USA Inc. 74LV Memory Series
The Nexperia USA Inc. 74LV Memory Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below. All listed Nexperia USA Inc. 74LV Memory Series part numbers are active and orderable.
Select a variant by
- Case
- 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 16-VFQFN Exposed Pad · 20-SOIC (0.295\", 7.50mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 20-VFQFN Exposed Pad · 24-VFQFN Exposed Pad · 48-TFSOP (0.173\", 4.40mm Width) · SC-74A, SOT-753
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 85°C (TA) · -40°C ~ 125°C · -40°C ~ 125°C (TA)
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT)
- Current - output high, low
- 8mA, 8mA · 12mA, 12mA · 16mA, 16mA · 20mA, 32mA · 24mA, 24mA · 32mA, 32mA · 32mA, 64mA
- Voltage
- 1V ~ 5.5V · 1.2V ~ 3.6V · 1.2V ~ 5.5V · 1.6V ~ 5.5V · 1.65V ~ 3.6V · 2.7V ~ 3.6V · 4.5V ~ 5.5V
- Logic type
- AND Gate · Buffer, Non-Inverting · D-Type Transparent Latch · Inverter · Transceiver, Non-Inverting · Translation Transceiver
- Number of bits per element
- 1 · 4 · 8
Shared specifications
- Mounting
- Surface Mount
Variant comparison

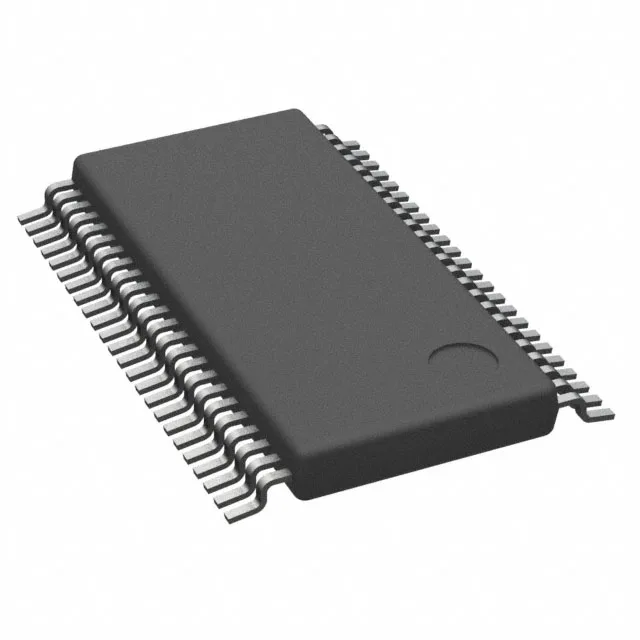

| Parameter | 74LV04ATPWJ | 74LV1T34GV-Q100H | 74LV244PW,118 | 74LV4053BQ,115 | 74LVC08AD,118 | 74LVC16373ADGV-Q1J |
|---|---|---|---|---|---|---|
| Case | 14-TSSOP (0.173\", 4.40mm Width) | SC-74A, SOT-753 | 20-TSSOP (0.173\", 4.40mm Width) | 16-VFQFN Exposed Pad | 14-SOIC (0.154\", 3.90mm Width) | 48-TFSOP (0.173\", 4.40mm Width) |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Bulk | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Current - output high, low | 12mA, 12mA | 8mA, 8mA | 16mA, 16mA | — | 24mA, 24mA | 24mA, 24mA |
| Voltage | 4.5V ~ 5.5V | 1.6V ~ 5.5V | 1V ~ 5.5V | — | 1.2V ~ 3.6V | 1.65V ~ 3.6V |
| Logic type | Inverter | Buffer, Non-Inverting | Buffer, Non-Inverting | — | AND Gate | D-Type Transparent Latch |
| Number of bits per element | — | 1 | 4 | — | — | — |
Request a quote on any Nexperia USA Inc. 74LV Memory Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
