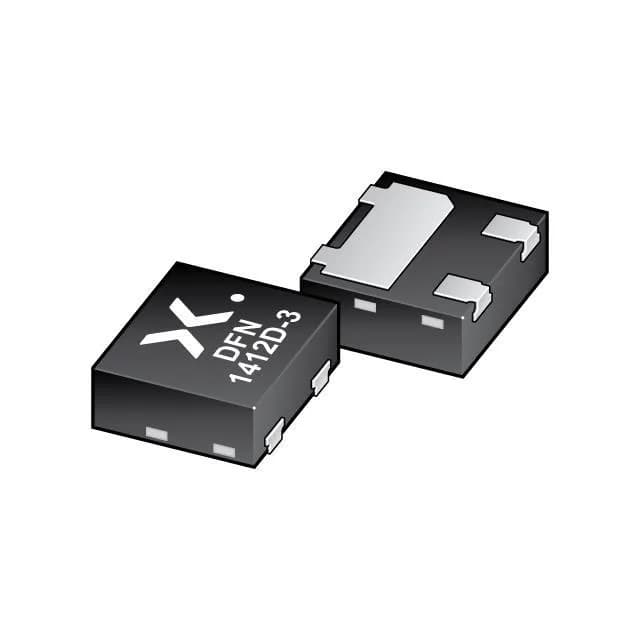

Nexperia USA Inc. BC846BQC-QZ
MPNBC846BQC-QZ
Active
TRANS NPN 65V 0.1A DFN1412D-3
$0.2600Ref. price · indicative, final on quote
Packaging3-XDFN Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101, BC846xQC-Q
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BC846xQB-Q |
| Mounting | Surface Mount, Wettable Flank |
| FET type | NPN |
| Voltage - collector emitter breakdown | 65 V |
| Current - collector (Ic) | 100 mA |
| Current - collector cutoff | 15nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 200 @ 2mA, 5V |
| Power - max | 360 mW |
| Frequency - transition | 100MHz |
| Operating temperature | 150°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Qualification | AEC-Q101 |
| Case | 3-XDFN Exposed Pad |
| Vce saturation (Max) @ ib, ic | 400mV @ 5mA, 100mA |
