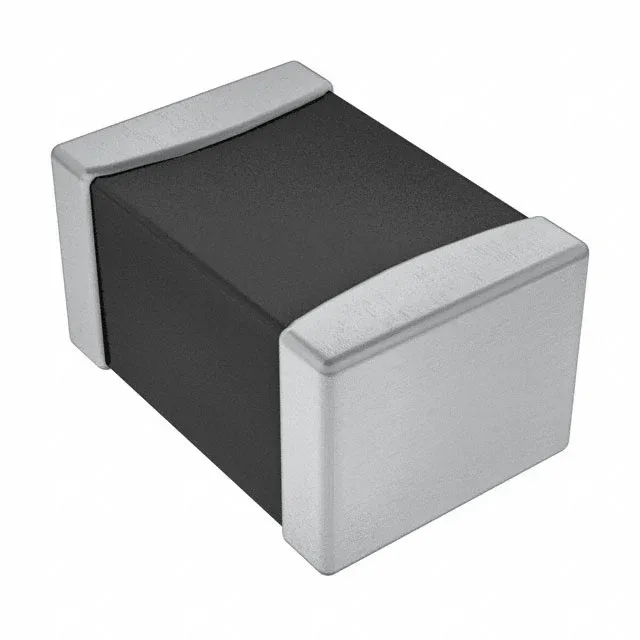

BLM18AG102BH1D
Murata Electronics
Surface MountEMIFIL®, BLM18-55°C ~ 150°C
Ref. price$0.1100
Lead time on requestGet quote
BLM18 0603 Chip Ferrite Bead EMIFIL Noise Suppression 30MHz–GHz
287 variants · Murata Electronics
About the BLM18 0603 Chip Ferrite Bead EMIFIL Noise Suppression 30MHz–GHz
The Murata Electronics BLM18 0603 Chip Ferrite Bead EMIFIL Noise Suppression 30MHz–GHz series groups 287 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 0603 (1608 Metric), height of 0.037\" (0.95mm) and number of lines of 1. Variants differ by current rating, DC resistance (DCR) and filter type, so you can match the exact current rating your application requires using the selection guide below.
Select a variant by
- Current rating
- 200mA · 300mA · 400mA · 450mA · 700mA · 800mA
- DC resistance (DCR)
- 180mOhm · 250mOhm · 400mOhm · 500mOhm · 700mOhm
- Filter type
- - · Power Line · Signal Line
- Impedance @ frequency
- 1 kOhms @ 100 MHz · 120 Ohms @ 100 MHz · 150 Ohms @ 100 MHz · 470 Ohms @ 100 MHz
- Mounting
- Surface Mount · Surface Mount, Epoxy
- Operating temperature
- -55°C ~ 125°C · -55°C ~ 150°C · -55°C~150°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Ratings
- - · AEC-Q200
Shared specifications
- Case
- 0603 (1608 Metric)
- Height
- 0.037\" (0.95mm)
- Number of lines
- 1
Variant comparison
| Parameter | BLM18BD121BH1D | BLM18RK471SN1D | BLM18AG102BH1D | BLM18AG102SH1D | BLM18AG102SN1D | BLM18AG102SZ1D |
|---|---|---|---|---|---|---|
| Current rating | 300mA | 200mA | 450mA | 450mA | 450mA | 400mA |
| DC resistance (DCR) | 400mOhm | 500mOhm | 500mOhm | 500mOhm | 500mOhm | 500mOhm |
| Filter type | Power Line | - | Power Line | - | - | Signal Line |
| Impedance @ frequency | 120 Ohms @ 100 MHz | 470 Ohms @ 100 MHz | 1 kOhms @ 100 MHz | 1 kOhms @ 100 MHz | 1 kOhms @ 100 MHz | 1 kOhms @ 100 MHz |
| Mounting | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
Request a quote on any BLM18 0603 Chip Ferrite Bead EMIFIL Noise Suppression 30MHz–GHz part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
