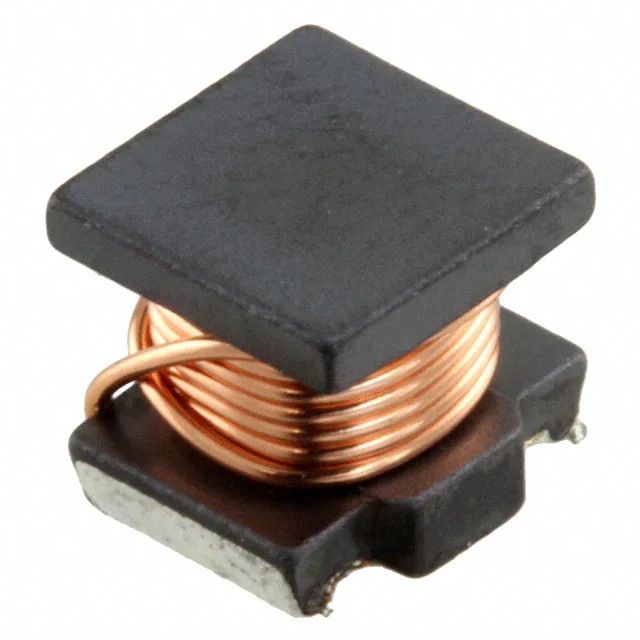

Murata Electronics LQH55DN471M03L
MPNLQH55DN471M03L
Active
$0.8844Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | LQH55 |
| Mounting | Surface Mount |
| Current rating | 240 mA |
| Frequency - self resonant | 2.4MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 80°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.224\" L x 0.197\" W (5.70mm x 5.00mm) |
| Height - seated | 0.197\" (5.00mm) |
| Package | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 470 µH |
| Case | 2220 (5750 Metric) |
| DC resistance | 7.56Ohm Max |
