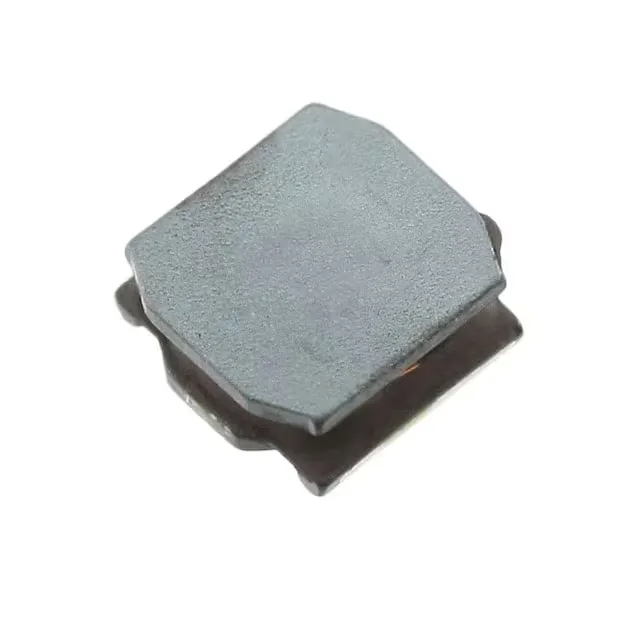

Murata Electronics LQH44PN2R2MP0L
MPNLQH44PN2R2MP0L
Last Buy
$0.4500Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | LQH44 |
| Mounting | Surface Mount |
| Current rating | 1.8 A |
| Current - saturation | 2.5A |
| Frequency - self resonant | 70MHz |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C~85°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.157\" L x 0.157\" W (4.00mm x 4.00mm) |
| Height - seated | 0.071\" (1.80mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 2.2 µH |
| Case | 1616 (4040 Metric) |
| DC resistance | 58.8mOhm Max |
