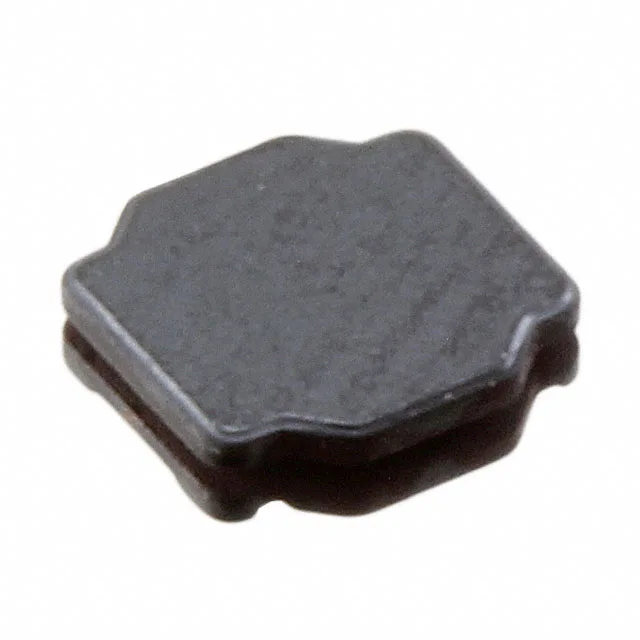

Murata Electronics LQH44PN1R5MJ0L
MPNLQH44PN1R5MJ0L
Active
$0.1649Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | LQH44 |
| Mounting | Surface Mount |
| Current rating | 1.38 A |
| Current - saturation | 1.6mA |
| Frequency - self resonant | 90MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 85°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.157\" L x 0.157\" W (4.00mm x 4.00mm) |
| Height - seated | 0.047\" (1.20mm) |
| Package | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 1.5 µH |
| Case | 1616 (4040 Metric) |
| DC resistance | 73.2mOhm Max |
