MIC2211-GSYML-TR
Microchip Technology
Surface MountTape & Reel (TR); Cut Tape (CT)< 1 A
Ref. price$1.29
Lead time on requestGet quote
MIC2xxx LDO & DC-DC Converters
58 variants · Microchip Technology
About the MIC2xxx LDO & DC-DC Converters
The Microchip Technology MIC2xxx LDO & DC-DC Converters series groups 58 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common operating temperature of -40°C ~ 125°C, output configuration of Positive and output type of Fixed. Variants differ by case, mounting and number of regulators, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 10-VFDFN Exposed Pad, 10-MLF® · TO-220-3 · TO-220-5
- Mounting
- Surface Mount · Through Hole
- Number of regulators
- 1 · 2
- Output current
- 3A · 150mA, 300mA
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT) · Tube
- Protection features
- Over Current, Over Temperature · Over Current, Over Temperature, Reverse Polarity, Transient Voltage
- Voltage - input
- 5.5V · 26V
- Voltage - output (Min (Fixed))
- 1.8V, 3.3V · 3V, 2.8V · 12V
Shared specifications
- Operating temperature
- -40°C ~ 125°C
- Output configuration
- Positive
- Output type
- Fixed
Variant comparison

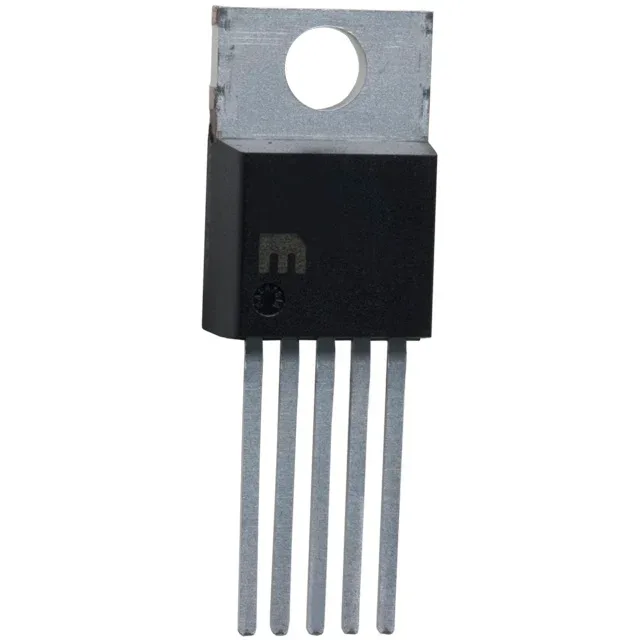

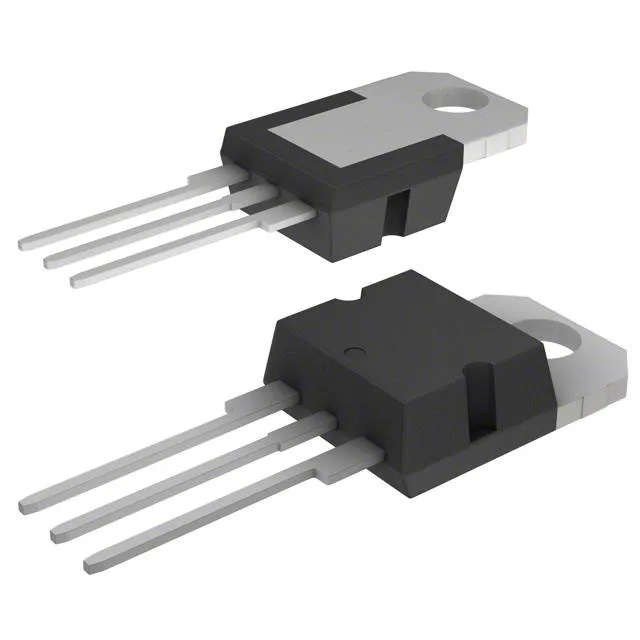

| Parameter | MIC2211-GSYML-TR | MIC2211-PMBML | MIC29300-12WT | MIC29301-12WT |
|---|---|---|---|---|
| Case | 10-VFDFN Exposed Pad, 10-MLF® | 10-VFDFN Exposed Pad, 10-MLF® | TO-220-3 | TO-220-5 |
| Mounting | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Number of regulators | 2 | 2 | 1 | 1 |
| Output current | 150mA, 300mA | 150mA, 300mA | 3A | 3A |
| Package | Tape & Reel (TR); Cut Tape (CT) | Bulk | Tube | Tube |
| Protection features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
| Voltage - input | 5.5V | 5.5V | 26V | 26V |
| Voltage - output (Min (Fixed)) | 1.8V, 3.3V | 3V, 2.8V | 12V | 12V |
Request a quote on any MIC2xxx LDO & DC-DC Converters part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
