MCP1700-1502E/TO
Microchip Technology
Bag-40°C~125°C44dB (100Hz)
Ref. price$0.5000
Lead time on requestGet quote ›
Microchip Technology MCP17 Series
200 variants · Microchip Technology
About the Microchip Technology Microchip Technology MCP17 Series series
The Microchip Technology Microchip Technology MCP17 Series series groups 200 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common control features of -, current - quiescent of 4 µA and number of regulators of 1. Variants differ by case, current - output and mounting type, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case

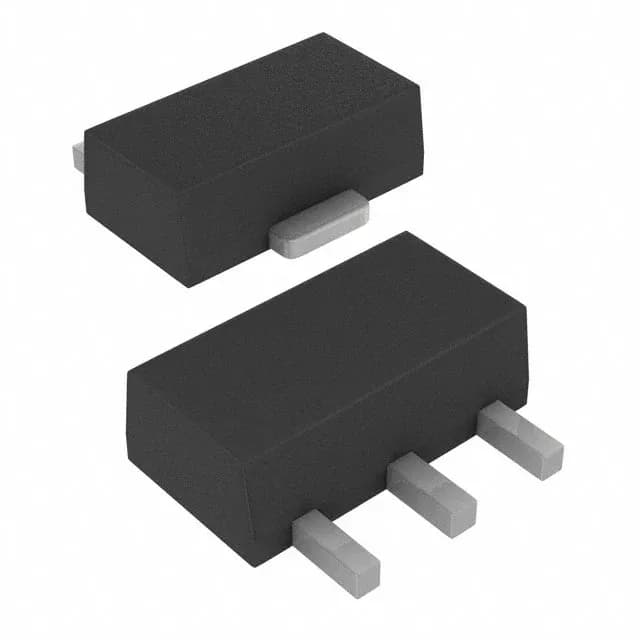

- TO-226-3, TO-92-3 (TO-226AA) · TO-243AA
- Current - output
- 200mA · 250mA
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 125°C · -40°C~125°C
- Package
- Bag · Bulk · Tape & Reel (TR) Cut Tape (CT)
- Voltage - output (Min (Fixed))
- 1.2V · 1.5V · 2.1V · 2.5V · 2.7V · 2.8V · 3V · 3.1V · 3.3V · 4V · 5V
- Voltage dropout
- 0.35V @ 200mA · 0.35V @ 250mA
Variant comparison
| Parameter | MCP1700-1502E/TO | MCP1700-2102E/TO | MCP1700-2502E/TO | MCP1700-2702E/TO | MCP1700-2802E/TO | MCP1700-3001E/TO |
|---|---|---|---|---|---|---|
| Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Current - output | 200mA | 200mA | 250mA | 250mA | 250mA | 250mA |
| Mounting type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating temperature | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C ~ 125°C | -40°C~125°C |
| Package | Bag | Bag | Bag | Bag | Bag | Bulk |
| Voltage - output (Min (Fixed)) | 1.5V | 2.1V | 2.5V | 2.7V | 2.8V | 3V |
| Voltage dropout | 0.35V @ 200mA | 0.35V @ 200mA | 0.35V @ 250mA | 0.35V @ 250mA | 0.35V @ 250mA | 0.35V @ 250mA |
Shared specifications
- Control features
- -
- Current - quiescent
- 4 µA
- Number of regulators
- 1
- Output configuration
- Positive
- Output type
- Fixed
- Protection features
- Over Current, Over Temperature, Short Circuit
- PSRR
- 44dB (100Hz)
- Voltage - input
- 6V
- Voltage - output
- -
Request a quote on any Microchip Technology MCP17 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology MCP17 Series variants differ?
- Microchip Technology MCP17 Series part numbers differ by case, current - output, mounting type and operating temperature. Use the selection guide above to pick by case.
- How many Microchip Technology Microchip Technology MCP17 Series part numbers are listed?
- 200 Microchip Technology Microchip Technology MCP17 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology MCP17 Series?
- Request a quote (RFQ) for any Microchip Technology MCP17 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
