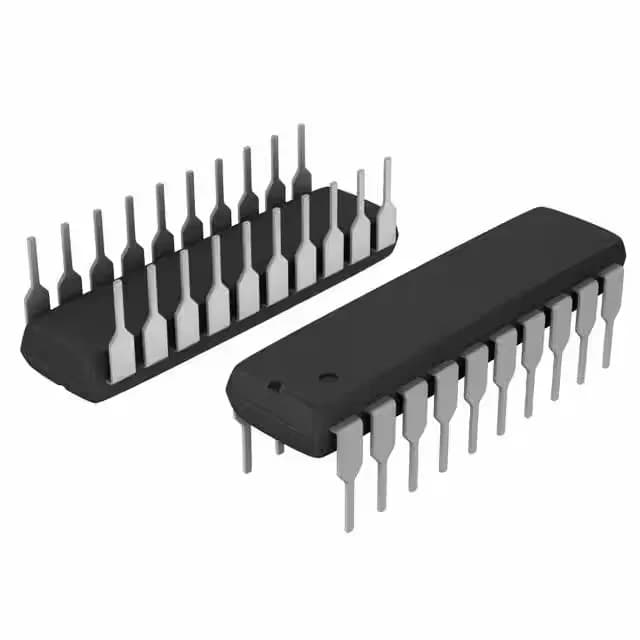

ATF16V8B-15PU
Microchip Technology
15 ns16V8Tube
Ref. price$1.2300
Lead time on requestGet quote ›
Microchip Technology ATF1 Series
12 variants · Microchip Technology
About the Microchip Technology Microchip Technology ATF1 Series series
The Microchip Technology Microchip Technology ATF1 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common number of macrocells of 8, package of Tube and programmable type of EE PLD. Variants differ by case, mounting type and speed, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 20-DIP (0.300\", 7.62mm) · 20-LCC (J-Lead) · 20-TSSOP (0.173\", 4.40mm Width)
- Mounting type
- Surface Mount · Through Hole
- Speed
- 5 ns · 7.5 ns · 15 ns
Variant comparison

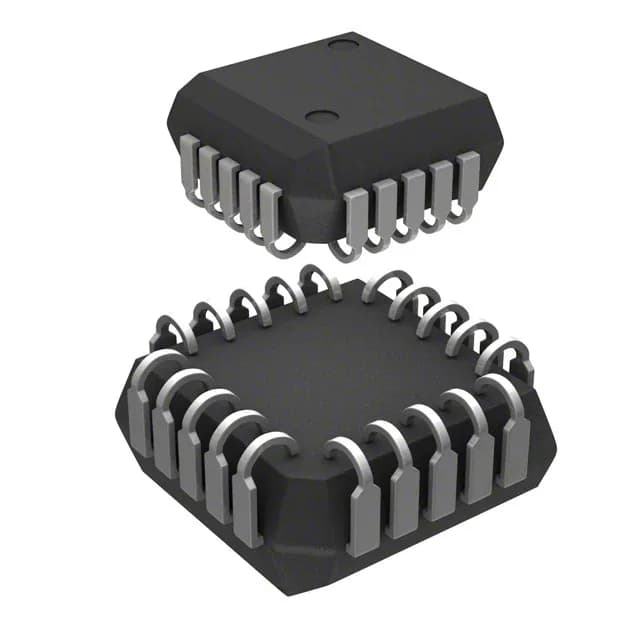

| Parameter | ATF16V8B-15PU | ATF16V8BQL-15JU | ATF16V8BQL-15PU | ATF16V8BQL-15XU | ATF16V8C-5JX | ATF16V8C-7PU |
|---|---|---|---|---|---|---|
| Case | 20-DIP (0.300\", 7.62mm) | 20-LCC (J-Lead) | 20-DIP (0.300\", 7.62mm) | 20-TSSOP (0.173\", 4.40mm Width) | 20-LCC (J-Lead) | 20-DIP (0.300\", 7.62mm) |
| Mounting type | Through Hole | Surface Mount | Through Hole | Surface Mount | Surface Mount | Through Hole |
| Speed | 15 ns | 15 ns | 15 ns | 15 ns | 5 ns | 7.5 ns |
Shared specifications
- Number of macrocells
- 8
- Package
- Tube
- Programmable type
- EE PLD
- Voltage - input
- 5V
Request a quote on any Microchip Technology ATF1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology ATF1 Series variants differ?
- Microchip Technology ATF1 Series part numbers differ by case, mounting type and speed. Use the selection guide above to pick by case.
- How many Microchip Technology Microchip Technology ATF1 Series part numbers are listed?
- 12 Microchip Technology Microchip Technology ATF1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology ATF1 Series?
- Request a quote (RFQ) for any Microchip Technology ATF1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
