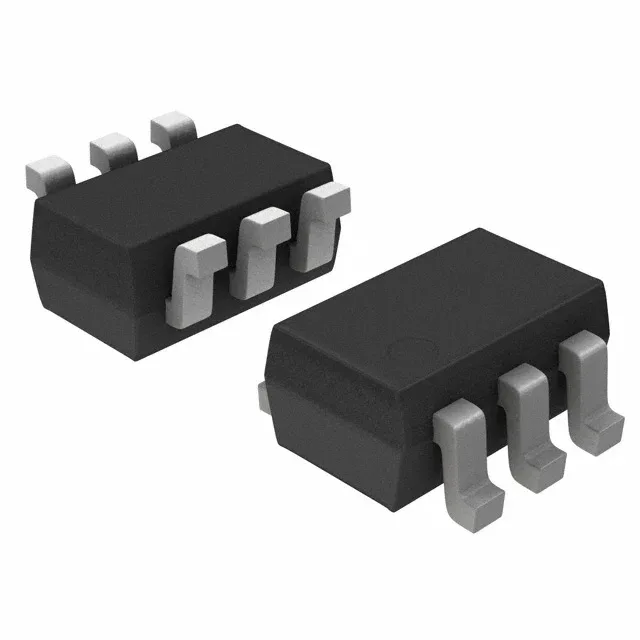

Micro Commercial Co BC846S-TP
MPNBC846S-TP
Active
$0.3900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| FET type | 2 NPN (Dual) |
| Voltage - collector emitter breakdown | 65V |
| Current - collector (Ic) | 100mA |
| Current - collector cutoff | 15nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 110 @ 2mA, 5V |
| Power - max | 200mW |
| Frequency | 100MHz |
| Operating temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 6-TSSOP, SC-88, SOT-363 |
| Vce saturation (Max) @ ib, ic | 300mV @ 5mA, 100mA |
