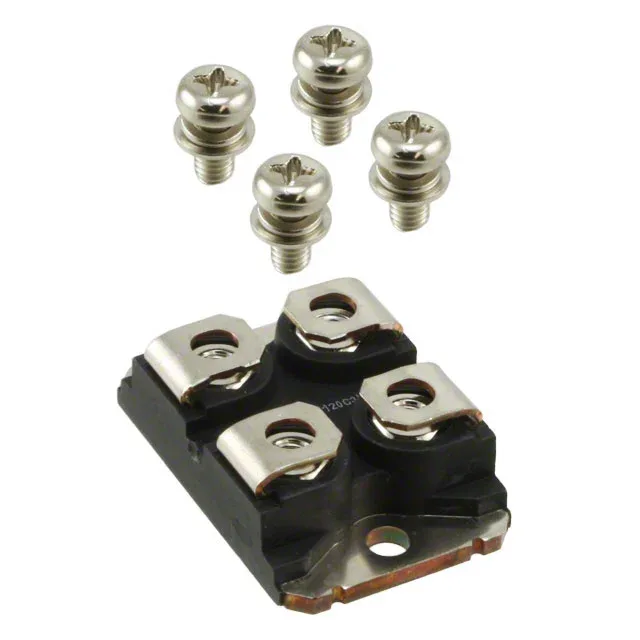

IXYS IXYN50N170CV1
MPNIXYN50N170CV1
Active
IGBT 1700V 120A SOT227B
$57.24Ref. price · indicative, final on quote
PackagingSOT-227-4, miniBLOC
RoHSROHS3 Compliant
SeriesXPT™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XPT™ |
| Input type | Standard |
| Mounting | Chassis Mount |
| Voltage - collector emitter breakdown | 1700 V |
| Current - collector (Ic) | 120 A |
| Current - collector pulsed | 485 A |
| Power - max | 880 W |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Gate charge | 260 nC |
| Case | SOT-227-4, miniBLOC |
| Test condition | 850V, 50A, 1Ohm, 15V |
| Switching energy | 8.7mJ (on), 5.6mJ (off) |
| Td (on/off) @ 25°C | 22ns/236ns |
| Vce(on) (Max) @ vge, ic | 3.7V @ 15V, 50A |
| Reverse recovery time | 255 ns |
