IXYS IXTN8N150L
MPNIXTN8N150L
Active
MOSFET N-CH 1500V 7.5A SOT-227B
$52.29Ref. price · indicative, final on quote

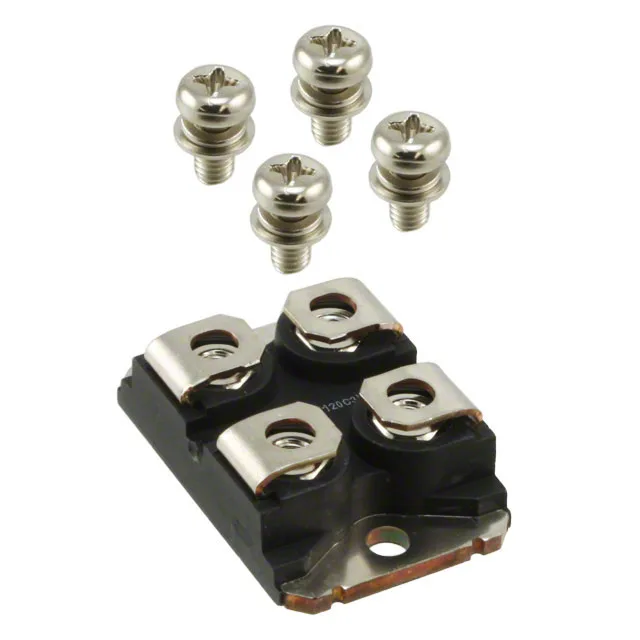

PackagingSOT-227-4, miniBLOC
RoHSROHS3 Compliant
SeriesLinear
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Linear |
| FET type | N-Channel |
| Mounting | Chassis Mount |
| Drain to source voltage | 1500 V |
| Drive voltage (Max rds on, min rds on) | 20V |
| Current - continuous drain (Id) @ 25°C | 7.5A (Tc) |
| Power dissipation | 545W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | SOT-227-4, miniBLOC |
| Vgs(th) (Max) @ id | 8V @ 250µA |
| Rds on (Max) @ id, vgs | 3.6Ohm @ 4A, 20V |
| Gate charge (Qg) (Max) @ vgs | 250 nC @ 15 V |
| Input capacitance (Ciss) (Max) @ vds | 8000 pF @ 25 V |
