IXYS IXTA76N25T
MPNIXTA76N25T
Active
MOSFET N-CH 250V 76A TO263
$6.22Ref. price · indicative, final on quote

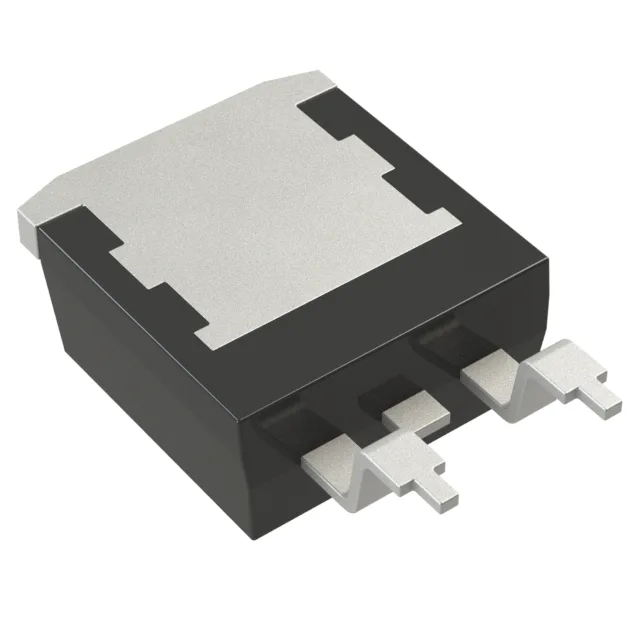

PackagingTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
RoHSROHS3 Compliant
SeriesTrench
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Trench |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 250 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 76A (Tc) |
| Power dissipation | 460W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ id | 5V @ 1mA |
| Rds on (Max) @ id, vgs | 39mOhm @ 500mA, 10V |
| Gate charge (Qg) (Max) @ vgs | 92 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 4500 pF @ 25 V |
