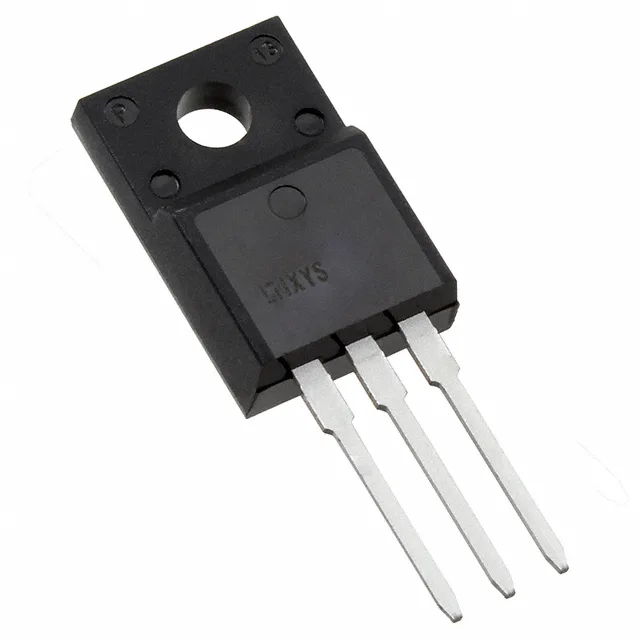

IXYS IXFP34N65X2M
MPNIXFP34N65X2M
Active
MOSFET N-CH 650V 34A TO220
$7.3Ref. price · indicative, final on quote
PackagingTO-220-3 Full Pack, Isolated Tab
RoHSROHS3 Compliant
SeriesHiPerFET™, Ultra X2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HiPerFET™, Ultra X2 |
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 650 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 34A (Tc) |
| Power dissipation | 40W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-220-3 Full Pack, Isolated Tab |
| Vgs(th) (Max) @ id | 5V @ 1.5mA |
| Rds on (Max) @ id, vgs | 100mOhm @ 17A, 10V |
| Gate charge (Qg) (Max) @ vgs | 56 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3230 pF @ 25 V |
