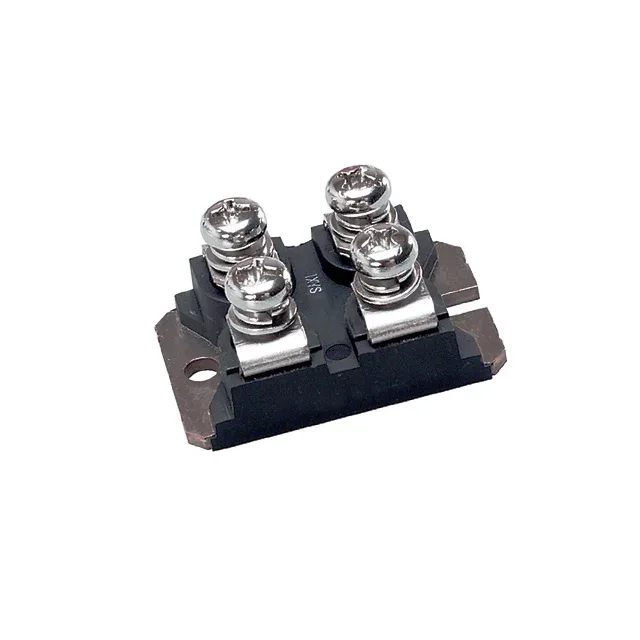

IXYS IXFN210N30X3
MPNIXFN210N30X3
Active
MOSFET N-CH 300V 210A SOT227B
$48.22Ref. price · indicative, final on quote
PackagingSOT-227-4, miniBLOC
SeriesHiPerFET™, Ultra X3
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HiPerFET™, Ultra X3 |
| FET type | N-Channel |
| Mounting | Chassis Mount |
| Drain to source voltage | 300 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 210A (Tc) |
| Power dissipation | 695W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | SOT-227-4, miniBLOC |
| Vgs(th) (Max) @ id | 4.5V @ 8mA |
| Rds on (Max) @ id, vgs | 4.6mOhm @ 105A, 10V |
| Gate charge (Qg) (Max) @ vgs | 375 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 24200 pF @ 25 V |
