IXDN609SIATR
IXYS Integrated Circuits Division
Tape & Reel (TR); Cut Tape (CT)IGBT, N-Channel, P-Channel MOSFETNon-Inverting
Ref. price$2.13
Lead time on requestGet quote ›
IXYS Integrated Circuits Division IXDN Series
24 variants · IXYS Integrated Circuits Division
About the IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series series
The IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channel type of Single, driven configuration of Low-Side and gate type of IGBT, N-Channel, P-Channel MOSFET. Variants differ by case, current - peak output (Source, sink) and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-SOIC (0.154\", 3.90mm Width) Exposed Pad
- Current - peak output (Source, sink)
- 9A, 9A · 14A, 14A
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Rise (Fall time)
- 22ns, 15ns · 25ns, 18ns
Variant comparison
| Parameter | IXDN609SIATR | IXDN614SI |
|---|---|---|

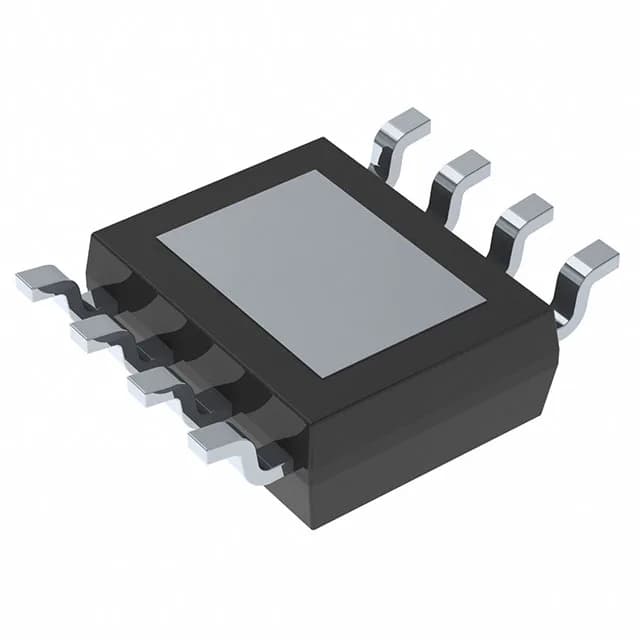

| Case | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) Exposed Pad |
| Current - peak output (Source, sink) | 9A, 9A | 14A, 14A |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Rise (Fall time) | 22ns, 15ns | 25ns, 18ns |
Shared specifications
- Channel type
- Single
- Driven configuration
- Low-Side
- Gate type
- IGBT, N-Channel, P-Channel MOSFET
- Input type
- Non-Inverting
- Logic voltage - VIL, VIH
- 0.8V, 3V
- Mounting type
- Surface Mount
- Number of drivers
- 1
- Operating temperature
- -55°C ~ 150°C (TJ)
- Voltage
- 4.5V ~ 35V
Request a quote on any IXYS Integrated Circuits Division IXDN Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series variants differ?
- IXYS Integrated Circuits Division IXDN Series part numbers differ by case, current - peak output (Source, sink), package and rise (Fall time). Use the selection guide above to pick by case.
- How many IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series part numbers are listed?
- 24 IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDN Series?
- Request a quote (RFQ) for any IXYS Integrated Circuits Division IXDN Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
