IXDD604SIA
IXYS Integrated Circuits Division
4.5V ~ 35VTube-40°C ~ 125°C (TA)
Ref. price$2.11
Lead time on requestGet quote ›
IXYS Integrated Circuits Division IXDD Series
21 variants · IXYS Integrated Circuits Division
About the IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series series
The IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series series groups 21 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common input type of Non-Inverting and mounting type of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-SOIC (0.154\", 3.90mm Width) Exposed Pad · TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Operating temperature
- -55°C ~ 150°C (TJ) · -40°C ~ 125°C (TA)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Channel type
- Independent · Single
- Current - peak output (Source, sink)
- 4A, 4A · 9A, 9A · 14A, 14A
- Number of drivers
- 1 · 2
- Rise (Fall time)
- 9ns, 8ns · 22ns, 15ns · 25ns, 18ns
Variant comparison
| Parameter | IXDD604SIA | IXDD604SIATR | IXDD609SITR | IXDD614SITR | IXDD614YI |
|---|---|---|---|---|---|

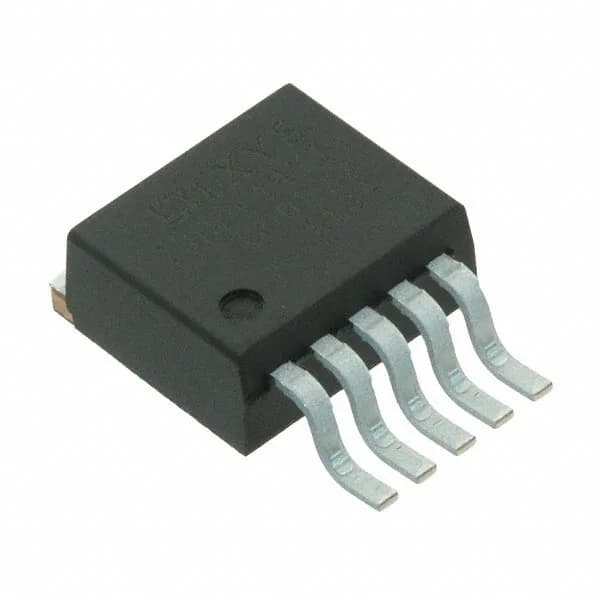

| Case | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) Exposed Pad | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Channel type | Independent | Independent | Single | Single | — |
| Current - peak output (Source, sink) | 4A, 4A | 4A, 4A | 9A, 9A | 14A, 14A | — |
| Number of drivers | 2 | 2 | 1 | 1 | — |
| Rise (Fall time) | 9ns, 8ns | 9ns, 8ns | 22ns, 15ns | 25ns, 18ns | — |
Shared specifications
- Input type
- Non-Inverting
- Mounting type
- Surface Mount
Request a quote on any IXYS Integrated Circuits Division IXDD Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series variants differ?
- IXYS Integrated Circuits Division IXDD Series part numbers differ by case, operating temperature, package and channel type. Use the selection guide above to pick by case.
- How many IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series part numbers are listed?
- 21 IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for IXYS Integrated Circuits Division IXYS Integrated Circuits Division IXDD Series?
- Request a quote (RFQ) for any IXYS Integrated Circuits Division IXDD Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
