Infineon Technologies BSC0 Series

36 variants · Infineon Technologies

About the Infineon Technologies Infineon Technologies BSC0 Series series

The Infineon Technologies Infineon Technologies BSC0 Series series groups 36 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 8-PowerTDFN, drive voltage (Max rds on, min rds on) of 4.5V, 10V and FET type of N-Channel. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and gate charge (Qg) (Max) @ vgs, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 16A (Ta), 73A (Tc) · 17A (Ta), 57A (Tc)
Drain to source voltage: 30 V · 40 V
Gate charge (Qg) (Max) @ vgs: 12 nC @ 10 V · 40 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 770 pF @ 15 V · 3200 pF @ 20 V
Power dissipation: 2.5W (Ta), 28W (Tc) · 2.5W (Ta), 50W (Tc)
Rds on (Max) @ id, vgs: 5.2mOhm @ 30A, 10V · 5.9mOhm @ 50A, 10V
Vgs(th) (Max) @ id: 2V @ 23µA · 2V @ 250µA

Variant comparison

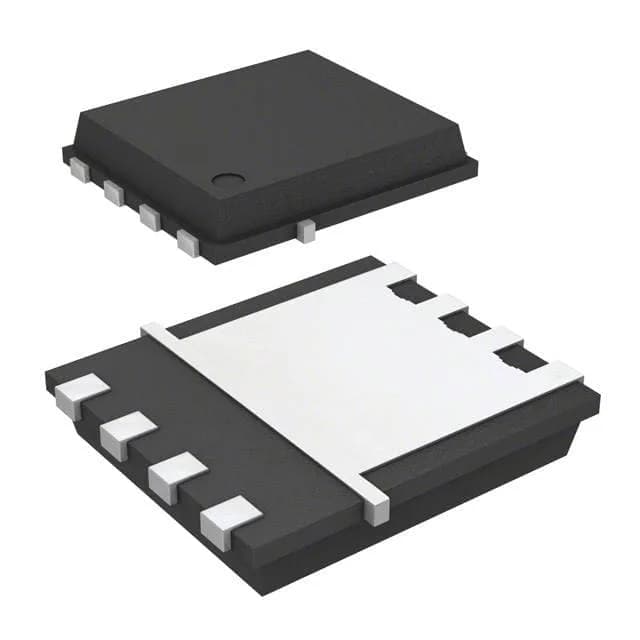

Parameter	BSC052N03LSATMA1	BSC059N04LSGATMA1
Current - continuous drain (Id) @ 25°C	17A (Ta), 57A (Tc)	16A (Ta), 73A (Tc)
Drain to source voltage	30 V	40 V
Gate charge (Qg) (Max) @ vgs	12 nC @ 10 V	40 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	770 pF @ 15 V	3200 pF @ 20 V
Power dissipation	2.5W (Ta), 28W (Tc)	2.5W (Ta), 50W (Tc)
Rds on (Max) @ id, vgs	5.2mOhm @ 30A, 10V	5.9mOhm @ 50A, 10V
Vgs(th) (Max) @ id	2V @ 250µA	2V @ 23µA

Shared specifications

Case: 8-PowerTDFN
Drive voltage (Max rds on, min rds on): 4.5V, 10V
FET type: N-Channel
Mounting type: Surface Mount
Operating temperature: -55°C ~ 150°C (TJ)
Package: Tape & Reel (TR); Cut Tape (CT)
Technology: MOSFET (Metal Oxide)
Vgs: ±20V

Request a quote on any Infineon Technologies BSC0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
