Harris Corporation — Logic ICs

Harris Corporation Logic ICs — 16 part numbers with specifications and datasheets. Filter by key specs and request a quote on ICBOMS.

Base Product Number
CD40106 · CD40117 · CD4011 · CD4013
Package / Case

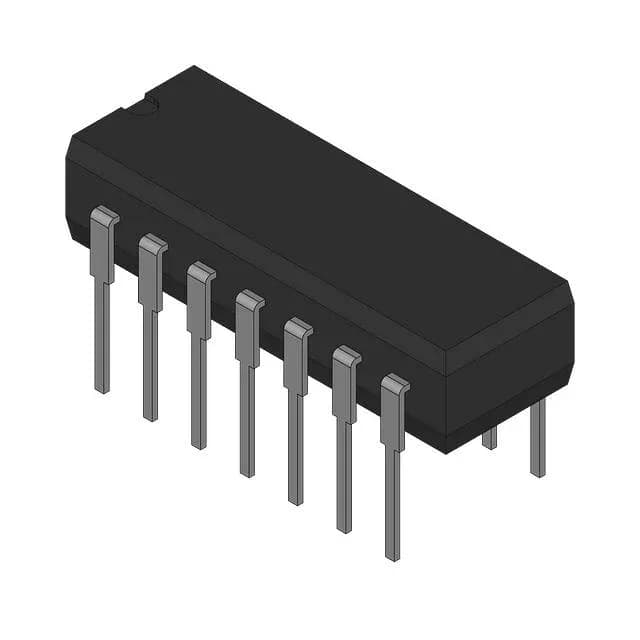

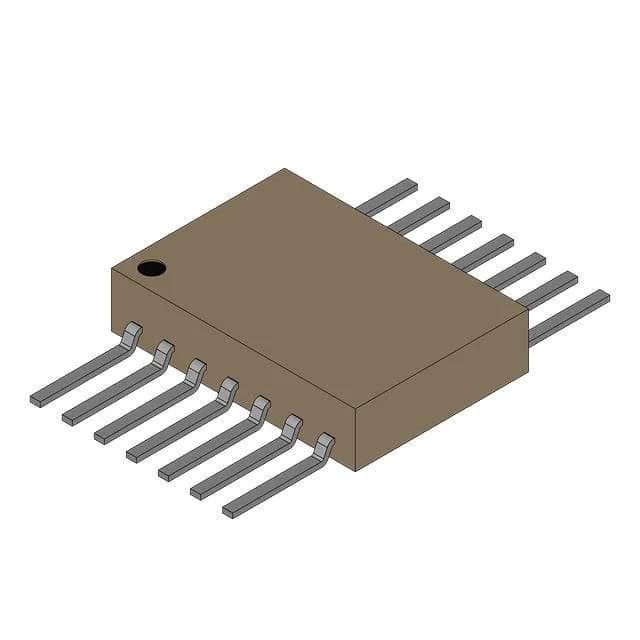

14-CFlatPack · 14-DIP (0.300", 7.62mm) · 14-CDIP (0.300", 7.62mm) · 16-CDIP (0.300", 7.62mm)
Max Propagation Delay @ V, Max CL
120ns @ 15V, 50pF · 40ns @ 10V, 15pF · 90ns @ 15V, 50pF · 50ns @ 15V, 50pF
Supplier Device Package
14-CFP · 14-PDIP · 14-CDIP · 16-CDIP
Number of Bits per Element
1 · 6 · 4 · 5
Input Logic Level - High
3.6V ~ 10.8V · - · 3.5V ~ 11V · 4V ~ 12.5V
Input Logic Level - Low
0.9V ~ 4V · - · 1.5V ~ 4V · 1V ~ 2.5V
Logic Type
Inverter · Programmable Terminator · NAND Gate · Counter, Decade
