EPC2108
EPC
eGaN®Tape & Reel (TR); Cut Tape (CT)3 N-Channel (Half Bridge + Synchronous Bootstrap)
Ref. price$1.83
Lead time on requestGet quote
EPC EPC2 Logic Series
4 variants · EPC
About the EPC EPC2 Logic Series
The EPC EPC2 Logic Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount, operating temperature of -40°C ~ 150°C (TJ) and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed EPC EPC2 Logic Series part numbers are active and orderable.
Select a variant by
- Case
- 9-VFBGA · Die
- Current - continuous drain (Id) @ 25°C
- 1.7A, 500mA · 18A (Ta) · 29A (Ta) · 60A (Ta)
- Drain to source voltage
- 60V, 100V · 80 V · 100 V
- FET type
- 3 N-Channel (Half Bridge + Synchronous Bootstrap) · N-Channel
- Gate charge (Qg) (Max) @ vgs
- 0.22nC @ 5V, 0.044nC @ 5V · 4 nC @ 5 V · 7.4 nC @ 5 V · 13.6 nC @ 5 V
- Input capacitance (Ciss) (Max) @ vds
- 22pF @ 30V, 7pF @ 30V · 407 pF @ 50 V · 851 pF @ 50 V · 1570 pF @ 50 V
- Rds on (Max) @ id, vgs
- 3.2mOhm @ 25A, 5V · 6mOhm @ 16A, 5V · 13.5mOhm @ 11A, 5V · 190mOhm @ 2.5A, 5V, 3.3Ohm @ 2.5A, 5V
Shared specifications
- Mounting
- Surface Mount
- Operating temperature
- -40°C ~ 150°C (TJ)
- Package
- Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | EPC2108 | EPC2204A | EPC2212 | EPC2218A |
|---|---|---|---|---|

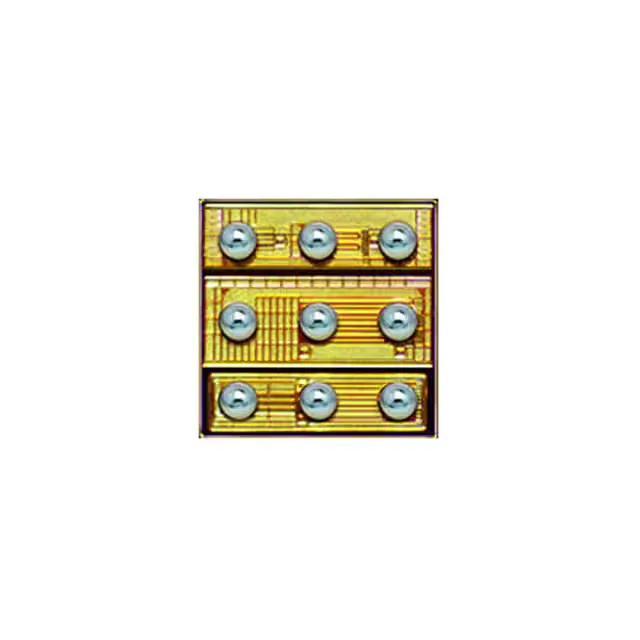

| Case | 9-VFBGA | Die | Die | Die |
| Current - continuous drain (Id) @ 25°C | 1.7A, 500mA | 29A (Ta) | 18A (Ta) | 60A (Ta) |
| Drain to source voltage | 60V, 100V | 80 V | 100 V | 80 V |
| FET type | 3 N-Channel (Half Bridge + Synchronous Bootstrap) | N-Channel | N-Channel | N-Channel |
| Gate charge (Qg) (Max) @ vgs | 0.22nC @ 5V, 0.044nC @ 5V | 7.4 nC @ 5 V | 4 nC @ 5 V | 13.6 nC @ 5 V |
| Input capacitance (Ciss) (Max) @ vds | 22pF @ 30V, 7pF @ 30V | 851 pF @ 50 V | 407 pF @ 50 V | 1570 pF @ 50 V |
| Rds on (Max) @ id, vgs | 190mOhm @ 2.5A, 5V, 3.3Ohm @ 2.5A, 5V | 6mOhm @ 16A, 5V | 13.5mOhm @ 11A, 5V | 3.2mOhm @ 25A, 5V |
Request a quote on any EPC EPC2 Logic Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
