Diodes Incorporated SDM2 Series

8 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated SDM2 Series series

The Diodes Incorporated Diodes Incorporated SDM2 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 2-XDFN, current - average rectified of 2A and mounting type of Surface Mount. Variants differ by capacitance @ vr, f, current - reverse leakage @ vr and voltage - DC reverse (Vr), so you can match the exact capacitance @ vr, f your application requires using the selection guide below.

Select a variant by

Capacitance @ vr, f: 85pF @ 5V, 1MHz · 110pF @ 4V, 1MHz
Current - reverse leakage @ vr: 150 µA @ 30 V · 150 µA @ 40 V
Voltage - DC reverse (Vr): 30 V · 40 V
Voltage - forward (Vf) (Max) @ if: 480 mV @ 2 A · 530 mV @ 2 A

Variant comparison

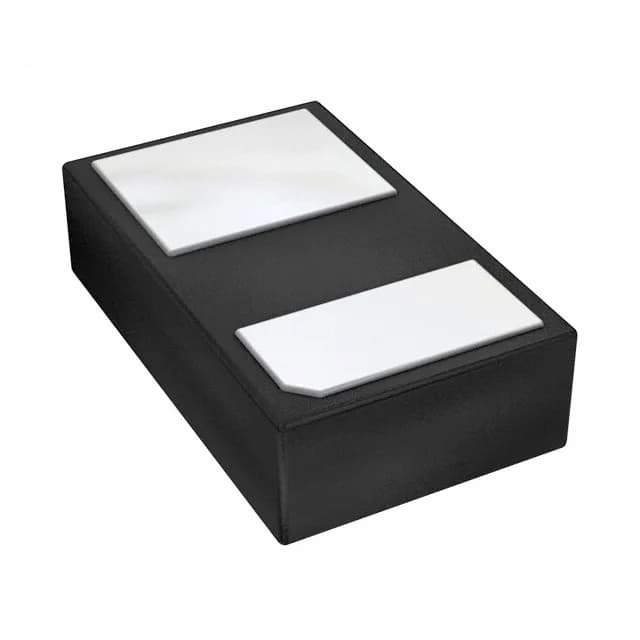

Parameter	SDM2U30CSP-7	SDM2U40CSP-7B
Capacitance @ vr, f	110pF @ 4V, 1MHz	85pF @ 5V, 1MHz
Current - reverse leakage @ vr	150 µA @ 30 V	150 µA @ 40 V
Voltage - DC reverse (Vr)	30 V	40 V
Voltage - forward (Vf) (Max) @ if	480 mV @ 2 A	530 mV @ 2 A

Shared specifications

Case: 2-XDFN
Current - average rectified: 2A
Mounting type: Surface Mount
Operating temperature - junction: -55°C ~ 150°C
Package: Tape & Reel (TR); Cut Tape (CT)
Speed: Fast Recovery =< 500ns, > 200mA (Io)

Request a quote on any Diodes Incorporated SDM2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
