How many Diodes Incorporated Diodes Incorporated GBJ1 Series part numbers are listed?

3 Diodes Incorporated Diodes Incorporated GBJ1 Series part numbers are listed, each with specifications and a datasheet where available.

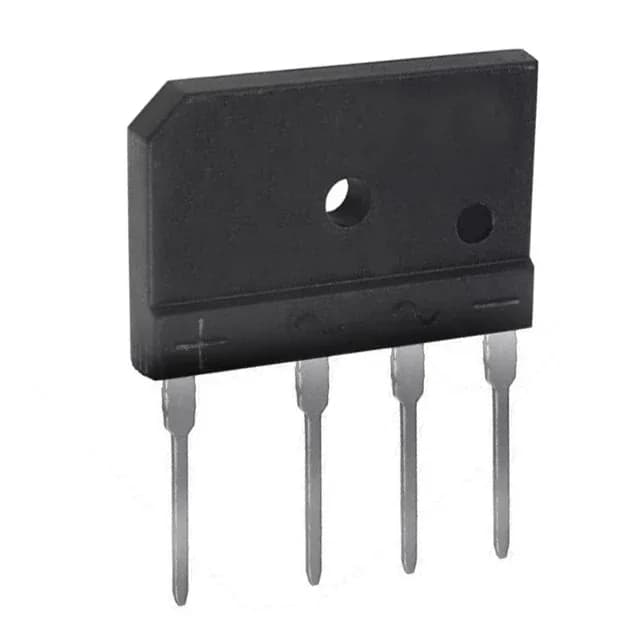

Diodes Incorporated GBJ1 Series

3 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated GBJ1 Series series

The Diodes Incorporated Diodes Incorporated GBJ1 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of 4-SIP, GBJ, diode type of Single Phase and mounting type of Through Hole. Variants differ by current - average rectified, current - reverse leakage @ vr and voltage - forward (Vf) (Max) @ if, so you can match the exact current - average rectified your application requires using the selection guide below. All listed Diodes Incorporated GBJ1 Series part numbers are active and orderable.

Select a variant by

Current - average rectified: 10 A · 15 A
Current - reverse leakage @ vr: 10 µA @ 400 V · 10 µA @ 600 V
Voltage - forward (Vf) (Max) @ if: 1.05 V @ 5 A · 1.05 V @ 7.5 A
Voltage - peak reverse: 400 V · 600 V

Variant comparison

Parameter	GBJ1006-F	GBJ1504-F	GBJ1506-F
Current - average rectified	10 A	15 A	15 A
Current - reverse leakage @ vr	10 µA @ 600 V	10 µA @ 400 V	10 µA @ 600 V
Voltage - forward (Vf) (Max) @ if	1.05 V @ 5 A	1.05 V @ 7.5 A	1.05 V @ 7.5 A
Voltage - peak reverse	600 V	400 V	600 V

Shared specifications

Case: 4-SIP, GBJ
Diode type: Single Phase
Mounting type: Through Hole
Operating temperature: -65°C ~ 150°C (TJ)
Package: Tube
Technology: Standard

Request a quote on any Diodes Incorporated GBJ1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Diodes Incorporated Diodes Incorporated GBJ1 Series variants differ?: Diodes Incorporated GBJ1 Series part numbers differ by current - average rectified, current - reverse leakage @ vr, voltage - forward (Vf) (Max) @ if and voltage - peak reverse. Use the selection guide above to pick by current - average rectified.
How many Diodes Incorporated Diodes Incorporated GBJ1 Series part numbers are listed?: 3 Diodes Incorporated Diodes Incorporated GBJ1 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated GBJ1 Series?: Request a quote (RFQ) for any Diodes Incorporated GBJ1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
