ZXMD63N03XTA - Diodes Incorporated
MPNZXMD63N03XTA
End of Life
MOSFET 2N-CH 30V 2.3A 8-MSOP
$2.35Ref. price · indicative, final on quote
Packaging8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 N-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 2.3A |
| Power - max | 1.04W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Logic Level Gate |

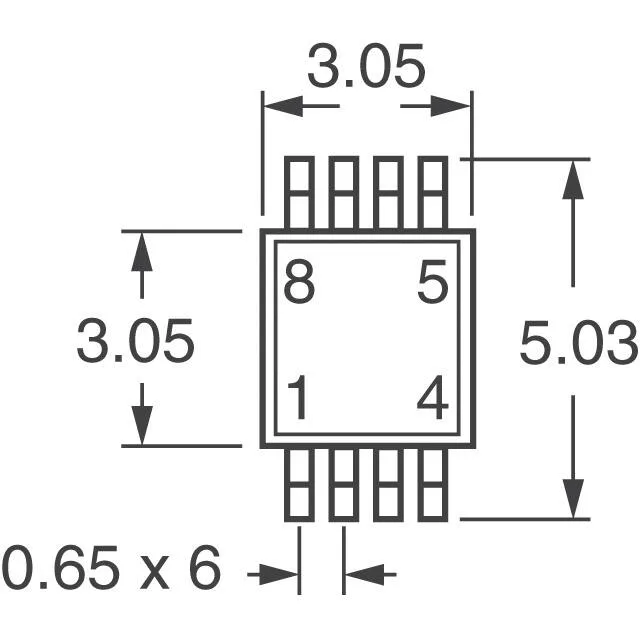

| Case | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) |
| Vgs(th) (Max) @ id | 1V @ 250µA (Min) |
| Rds on (Max) @ id, vgs | 135mOhm @ 1.7A, 10V |
| Gate charge (Qg) (Max) @ vgs | 8nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 290pF @ 25V |
