Diodes Incorporated ZVN4525E6TC
MPNZVN4525E6TC
Obsolete
$0.8300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 250 V |
| Drive voltage (Max rds on, min rds on) | 2.4V, 10V |
| Current - continuous drain (Id) @ 25°C | 230mA (Ta) |
| Power dissipation | 1.1W (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Vgs | ±40V |
| Technology | MOSFET (Metal Oxide) |

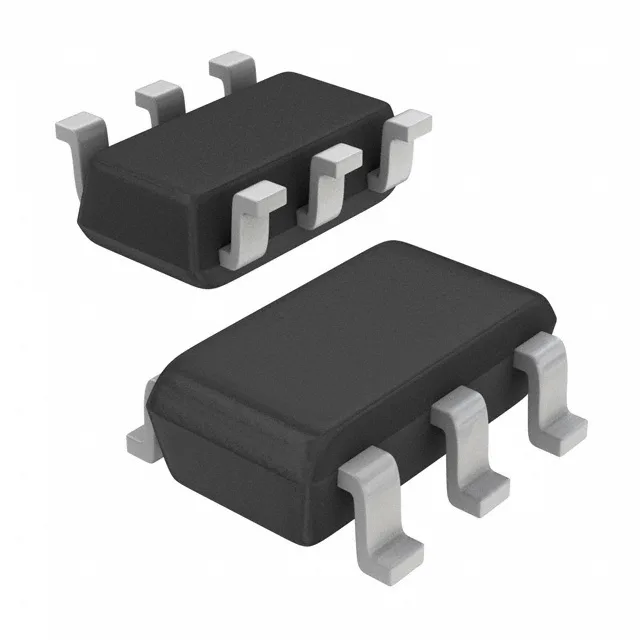

| Case | SOT-23-6 |
| Vgs(th) (Max) @ id | 1.8V @ 1mA |
| Rds on (Max) @ id, vgs | 8.5Ohm @ 500mA, 10V |
| Gate charge (Qg) (Max) @ vgs | 3.65 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 72 pF @ 25 V |
