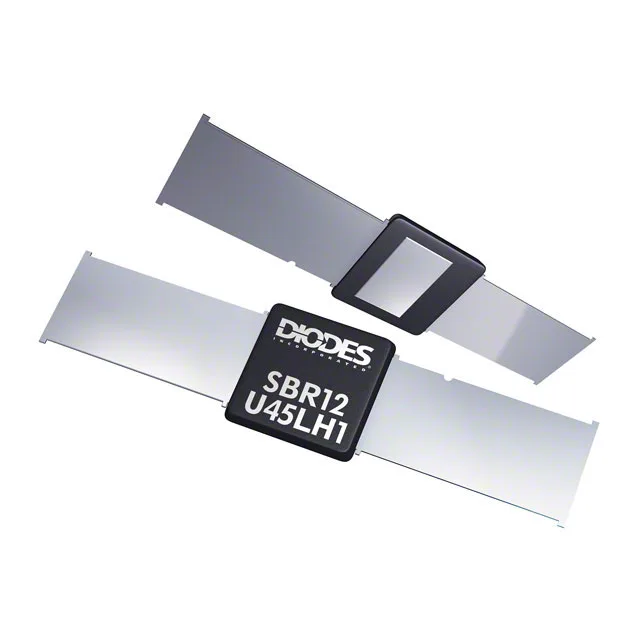

Diodes Incorporated SBR12U45LH1-13R
MPNSBR12U45LH1-13R
End of Life
DIODE SBR 45V 12A POWERDI5SP
$1.49Ref. price · indicative, final on quote
PackagingPowerDI™ 5SP
RoHSROHS3 Compliant
SeriesSBR®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SBR® |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 45 V |
| Voltage - forward (Vf) (Max) @ if | 500 mV @ 12 A |
| Current - reverse leakage @ vr | 300 µA @ 45 V |
| Current - average rectified | 12A |
| Operating temperature - junction | -65°C ~ 150°C |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Super Barrier |
| Case | PowerDI™ 5SP |
