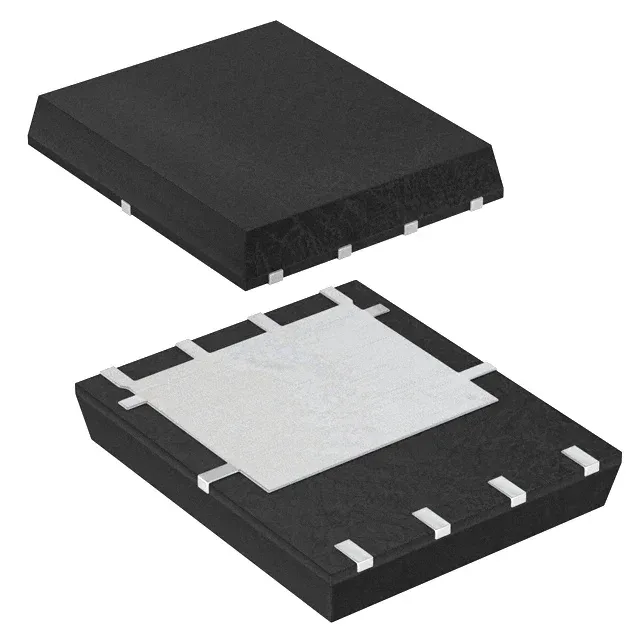

Diodes Incorporated DMNH6009SPS-13
MPNDMNH6009SPS-13
Active
$0.6383Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 60 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 95A (Tc) |
| Power dissipation | 1.6W |
| Operating temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 3V @ 250µA |
| Rds on (Max) @ id, vgs | 7.3mOhm @ 50A, 10V |
| Gate charge (Qg) (Max) @ vgs | 37.3 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1882 pF @ 30 V |
