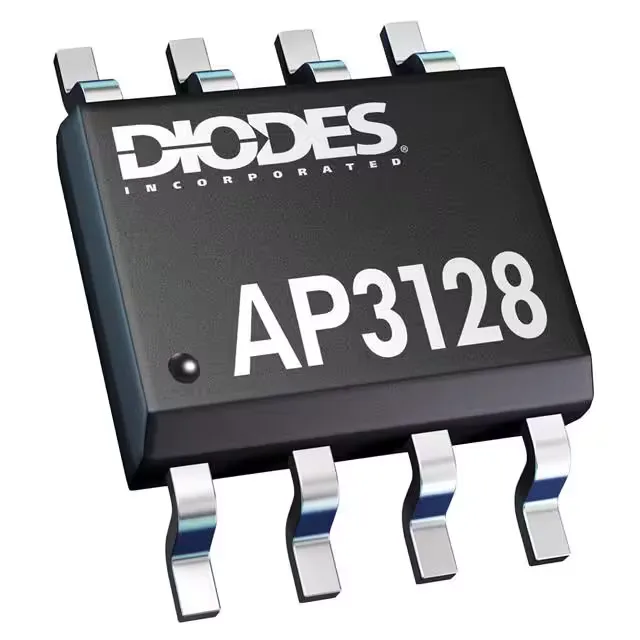

Diodes Incorporated AP3128S-13
MPNAP3128S-13
End of Life
ACDC PWM SWITCHER SO-8 T&R 2.5K
$0.76Ref. price · indicative, final on quote
Packaging8-SOIC (0.154", 3.90mm Width)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - breakdown | 700V |
| Voltage - supply (Vcc (Vdd)) | 10V ~ 50V |
| Frequency - switching | 23kHz ~ 105kHz |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Topology | Flyback |
| Case | 8-SOIC (0.154\", 3.90mm Width) |
| Control features | Soft Start |
| Fault protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Output isolation | Isolated |
| Internal switch | Yes |
