SRP6540-100M
Bourns Inc.
10 µHTape & Reel (TR); Cut Tape (CT)-55°C~125°C
Ref. price$1.5500
Lead time on requestGet quote

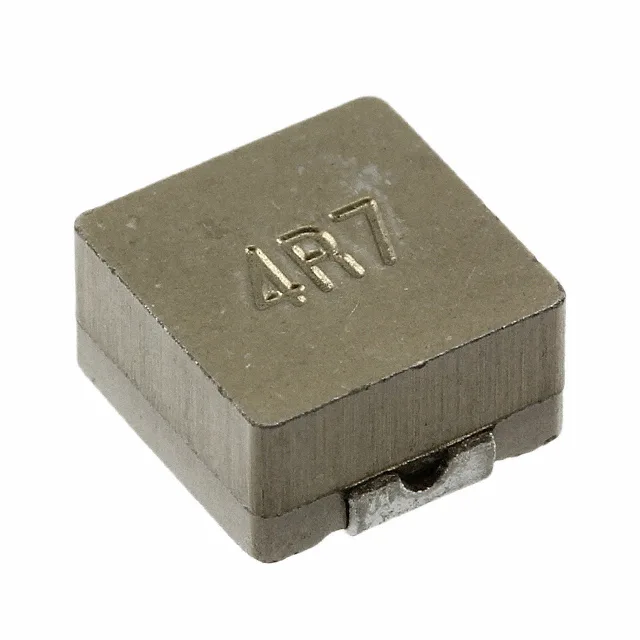

Bourns Inc. SRP6540 Series
17 variants · Bourns Inc.
About the Bourns Inc. SRP6540 Series
The Bourns Inc. SRP6540 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of Nonstandard, frequency - self resonant of - and height - seated of 0.157\" (4.00mm). Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. All listed Bourns Inc. SRP6540 Series part numbers are active and orderable.
Select a variant by
- Current - saturation
- 1.6A · 1.8A · 2A · 2.5A · 2.9A · 4A · 6A · 6.5A · 7A · 9A · 11A · 13.5A
- Current rating
- 1.6 A · 1.8 A · 2 A · 2.5 A · 2.9 A · 4 A · 5.5 A · 6 A · 6.5 A · 9 A · 11 A · 12 A
- DC resistance
- 7.2mOhm Max · 10mOhm Max · 15.5mOhm Max · 23mOhm Max · 33.5mOhm Max · 38mOhm Max · 78.5mOhm Max · 121mOhm Max · 133mOhm Max · 290mOhm Max · 322mOhm Max · 366mOhm Max
- Inductance
- 1 µH · 1.5 µH · 2.2 µH · 3.3 µH · 4.7 µH · 5.6 µH · 10 µH · 15 µH · 22 µH · 27 µH · 39 µH · 47 µH
Shared specifications
- Case
- Nonstandard
- Frequency - self resonant
- -
- Height - seated
- 0.157\" (4.00mm)
- Inductance frequency - test
- 100 kHz
- Material - core
- Iron Powder
- Mounting
- Surface Mount
- Operating temperature
- -55°C~125°C
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Q @ freq
- -
- Ratings
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.283\" L x 0.256\" W (7.20mm x 6.50mm)
Variant comparison
| Parameter | SRP6540-100M | SRP6540-150M | SRP6540-1R0M | SRP6540-1R5M | SRP6540-220M | SRP6540-270M |
|---|---|---|---|---|---|---|
| Current - saturation | 4A | 2.9A | 13.5A | 11A | 2.5A | 2A |
| Current rating | 4 A | 2.9 A | 12 A | 11 A | 2.5 A | 2 A |
| DC resistance | 78.5mOhm Max | 121mOhm Max | 7.2mOhm Max | 10mOhm Max | 133mOhm Max | 290mOhm Max |
| Inductance | 10 µH | 15 µH | 1 µH | 1.5 µH | 22 µH | 27 µH |
Request a quote on any Bourns Inc. SRP6540 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
