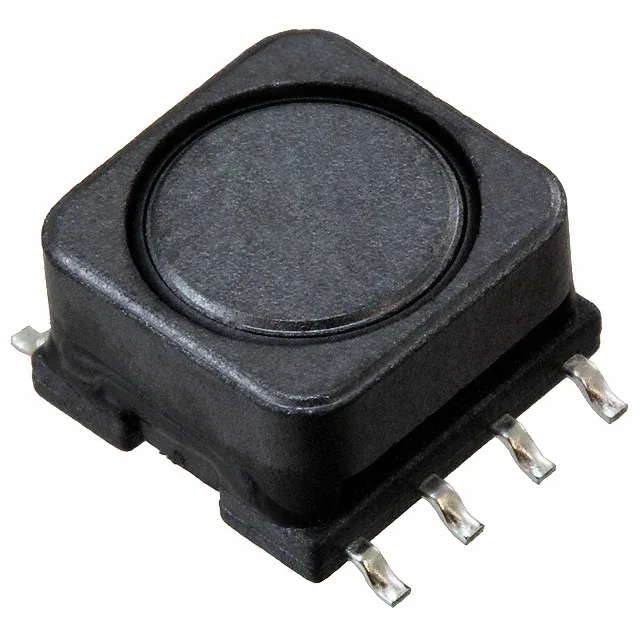

Bourns Inc. SRR0906-680ML
MPNSRR0906-680ML
Active
$0.6439Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR0906 |
| Mounting | Surface Mount |
| Current rating | 850 mA |
| Current - saturation | 1A |
| Frequency - self resonant | 9MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.394\" L x 0.374\" W (10.00mm x 9.50mm) |
| Height - seated | 0.248\" (6.30mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 40 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 68 µH |
| Case | 8-SMD, Gull Wing |
| DC resistance | 350mOhm Max |
