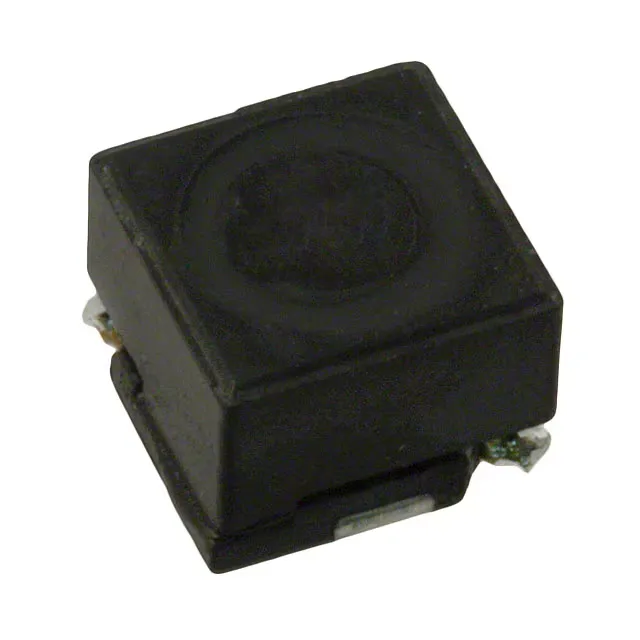

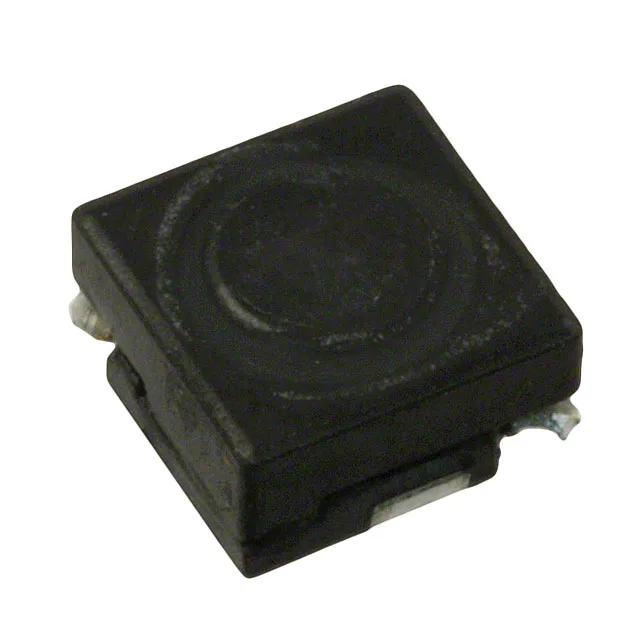

SRR0805-820K
Bourns Inc.
SRR08050.185\" (4.70mm)Tape & Reel (TR)
Ref. price$0.4294
Lead time on requestGet quote
SRR0xxx Shielded SMD Power Inductors
259 variants · Bourns Inc.
About the SRR0xxx Shielded SMD Power Inductors
The Bourns Inc. SRR0xxx Shielded SMD Power Inductors series groups 259 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common inductance frequency - test of 1 kHz, material - core of Ferrite and mounting of Surface Mount. Variants differ by case, current - saturation and DC resistance, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current SRR0xxx Shielded SMD Power Inductors variants and discontinued ones from a single page.
Select a variant by
- Case
- Nonstandard · Nonstandard, Corner Terminals
- Current - saturation
- - · 1.05A · 1.2A · 1.5A · 2.95A · 3.5A · 130mA · 310mA · 390mA · 440mA · 740mA · 830mA
- DC resistance
- - · 1.5Ohm Max · 1.9Ohm Max · 2.7Ohm Max · 14Ohm Max · 32mOhm Max · 40mOhm Max · 120mOhm Max · 180mOhm Max · 270mOhm Max · 430mOhm Max · 550mOhm Max
- Frequency - self resonant
- - · 3MHz · 5MHz · 8MHz · 8.5MHz · 9MHz · 16MHz · 20MHz · 25MHz · 90MHz · 95MHz
- Height - seated
- 0.130\" (3.30mm) · 0.185\" (4.70mm)
- Inductance
- 1 mH · 1.5 µH · 2.5 µH · 10 µH · 15 µH · 22 µH · 27 µH · 33 µH · 82 µH · 100 µH · 150 µH · 220 µH
- Operating temperature
- -40°C ~ 125°C · -40°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR); Cut Tape (CT)
Shared specifications
- Inductance frequency - test
- 1 kHz
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Ratings
- -
- Shielding
- Shielded
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | SRR0805-820K | SRR0603-100ML | SRR0603-101KL | SRR0603-102KL | SRR0603-150ML | SRR0603-151KL |
|---|---|---|---|---|---|---|
| Case | Nonstandard | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals |
| Current - saturation | 740mA | 1.5A | 440mA | 130mA | 1.2A | 390mA |
| DC resistance | 550mOhm Max | 120mOhm Max | 1.5Ohm Max | 14Ohm Max | 180mOhm Max | 1.9Ohm Max |
| Frequency - self resonant | 8.5MHz | 25MHz | 9MHz | 3MHz | 25MHz | 8MHz |
| Height - seated | 0.185\" (4.70mm) | 0.130\" (3.30mm) | 0.130\" (3.30mm) | 0.130\" (3.30mm) | 0.130\" (3.30mm) | 0.130\" (3.30mm) |
| Inductance | 82 µH | 10 µH | 100 µH | 1 mH | 15 µH | 150 µH |
| Operating temperature | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C |
| Package | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Request a quote on any SRR0xxx Shielded SMD Power Inductors part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
