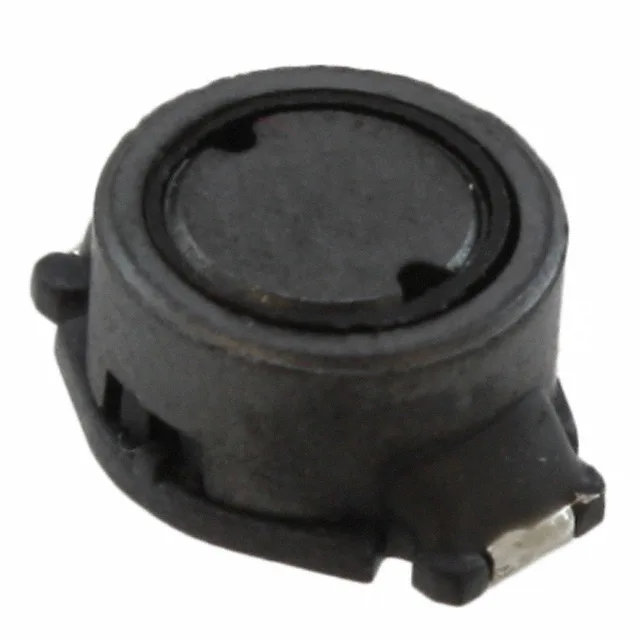

Bourns Inc. SRR0805-8R2M
MPNSRR0805-8R2M
Active
$0.8400Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR0805 |
| Mounting | Surface Mount |
| Current rating | 1.75 A |
| Current - saturation | 2.5A |
| Frequency - self resonant | 32MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.413\" L x 0.315\" W (10.50mm x 8.00mm) |
| Height - seated | 0.185\" (4.70mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 19 @ 7.96MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 8.2 µH |
| Case | Nonstandard |
| DC resistance | 80mOhm Max |
