MAX9717BETA+
Analog Devices
Strip
Ref. price$1.85
Lead time on requestGet quote
MAX9xxx High-Speed Comparators & Op-Amp + Reference ICs
41 variants · Analog DevicesAll Memory (DRAM / SRAM / Flash / EEPROM) →
About the MAX9xxx High-Speed Comparators & Op-Amp + Reference ICs
The Analog Devices MAX9xxx High-Speed Comparators & Op-Amp + Reference ICs series groups 41 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, operating temperature and output type, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 5-TSSOP, SC-70-5, SOT-353 · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) Exposed Pad · 9-WFBGA, CSPBGA · 9-WFBGA, WLBGA · 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) · 12-WFBGA, CSPBGA · 12-WQFN Exposed Pad · 16-TSSOP (0.173\", 4.40mm Width) · 20-WFBGA, CSPBGA · 36-WFBGA, WLBGA
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 85°C (TA) · -40°C ~ 125°C
- Output type
- 1-Channel (Mono) · 1-Channel (Mono) with Stereo Headphones · Differential · Headphones, 2-Channel (Stereo) · Rail-to-Rail
- Package
- Bulk · Strip · Tape & Reel (TR); Cut Tape (CT) · Tube
- Max output power x channels @ load
- 1.4W x 1 @ 4Ohm · 2.3W x 1 @ 4Ohm · 2.4W x 1 @ 8Ohm · 3.2W x 1 @ 4Ohm · 25mW x 1 @ 16Ohm · 25mW x 2 @ 16Ohm · 50mW x 2 @ 32Ohm · 124mW x 2 @ 16Ohm
- Type
- Class AB · Class D · Class G
- Voltage
- 0.9V ~ 1.8V · 1.8V ~ 3.6V · 2.5V ~ 5.5V · 2.7V ~ 5.5V
- Amplifier type
- General Purpose · Programmable Gain
Shared specifications
- Mounting
- Surface Mount
Variant comparison
| Parameter | MAX9720AEUE | MAX9725AETC | MAX9788EBP+ | MAX98361AEWL+ | MAX9914EXK+T | MAX9717DEUA |
|---|---|---|---|---|---|---|

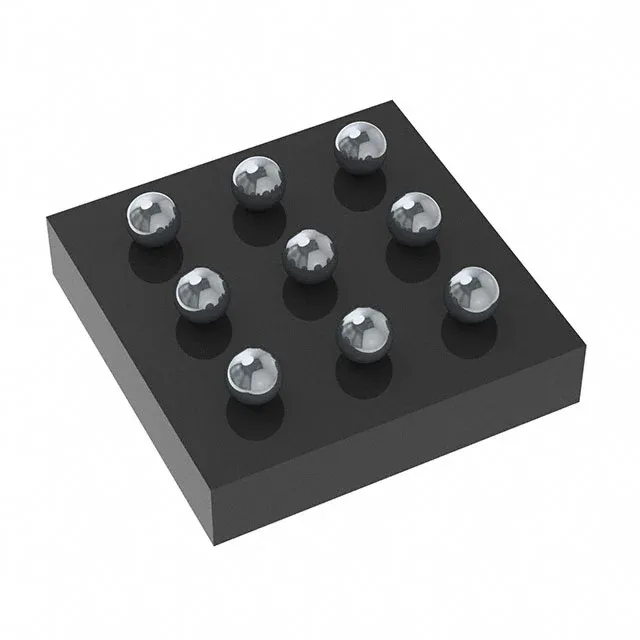

| Case | 16-TSSOP (0.173\", 4.40mm Width) | 12-WQFN Exposed Pad | 20-WFBGA, CSPBGA | 9-WFBGA, WLBGA | 5-TSSOP, SC-70-5, SOT-353 | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) Exposed Pad |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Output type | Headphones, 2-Channel (Stereo) | Headphones, 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) | Rail-to-Rail | 1-Channel (Mono) |
| Package | Bulk | Bulk | Bulk | Strip | Tape & Reel (TR); Cut Tape (CT) | Bulk |
| Max output power x channels @ load | 50mW x 2 @ 32Ohm | 25mW x 2 @ 16Ohm | 2.4W x 1 @ 8Ohm | 3.2W x 1 @ 4Ohm | — | 1.4W x 1 @ 4Ohm |
| Type | Class AB | Class AB | Class G | Class D | — | Class AB |
| Voltage | 1.8V ~ 3.6V | 0.9V ~ 1.8V | 2.7V ~ 5.5V | 2.5V ~ 5.5V | — | 2.7V ~ 5.5V |
| Amplifier type | — | — | — | — | General Purpose | — |
Request a quote on any MAX9xxx High-Speed Comparators & Op-Amp + Reference ICs part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
