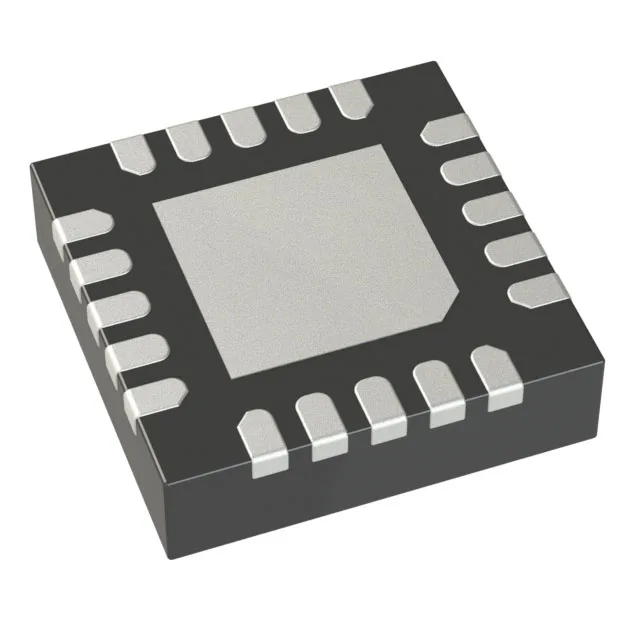

LTC3562EUD#PBF
Analog Devices
Tube-40°C ~ 85°C (TA)Step-Down
Ref. price$10.29
Lead time on requestGet quote
Analog Devices LTC3 Logic Series
2 variants · Analog Devices
About the Analog Devices LTC3 Logic Series
The Analog Devices LTC3 Logic Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount. Variants differ by case, frequency and I/O channels, so you can match the exact case your application requires using the selection guide below. All listed Analog Devices LTC3 Logic Series part numbers are active and orderable.
Select a variant by
- Case
- 16-WFQFN Exposed Pad · 20-WFQFN Exposed Pad
- Frequency
- 2.2MHz · 2.25MHz
- I/O channels
- 2 · 4
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 85°C (TA)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Topology
- Buck · Step-Up (Boost) Synchronous (1), Linear (LDO) (1)
Shared specifications
- Mounting
- Surface Mount
Variant comparison
| Parameter | LTC3537EUD#TRPBF | LTC3562EUD#PBF |
|---|---|---|
| Case | 16-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Frequency | 2.2MHz | 2.25MHz |
| I/O channels | 2 | 4 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Topology | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) | Buck |
Request a quote on any Analog Devices LTC3 Logic Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
