Analog Devices MAX8614BETD+T — Signal Isolation
Analog Devices

MAX8614BETD+T CCD Bias Regulator, Dual Output ±24V/-16V

MPNMAX8614BETD+T
End of Life

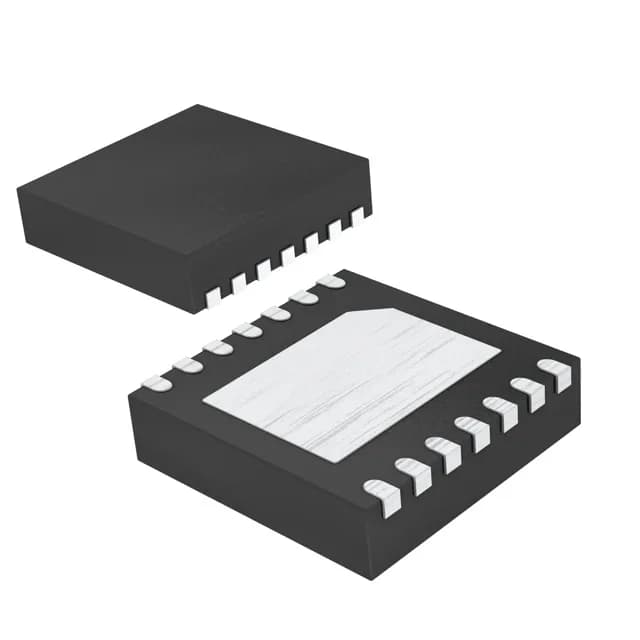

Analog Devices MAX8614BETD+T, CCD bias converter, dual output, adjustable up to +24V and down to -16V, 3V to 5.5V input, 14-TDFN (3x3) package, -40°C to 85°C.

$6.2Ref. price · indicative, final on quote
MAX8614BETD+T datasheet
Packaging14-WFDFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX8614BETD+T Technical Specifications
ParameterValue
Mounting typeSurface Mount
Voltage - input3V ~ 5.5V
Voltage - outputAdj up to 24V, Adj down to -16V
Number of outputs2
Operating temperature-40°C ~ 85°C
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsConverter, CCD
Case14-WFDFN Exposed Pad

Product details

Dual-output voltage range — what it means for the CCD bias plan

The positive output adjusts up to +24V, the negative output adjusts down to -16V. The 3V minimum input means it can run from a 3.3V logic rail or a single lithium cell.

Active, ROHS3, and the sourcing picture

The MAX8614BETD+T carries an active lifecycle status — no last-time-buy notice, no NRND flag. ROHS3 compliant, so it clears the current EU material restrictions without an exemption. For a BOM line that needs a CCD bias generator, this part is still a first-choice fit, not a legacy holdover.

Frequently asked questions

Is MAX8614BETD+T RoHS compliant?

Yes, it is ROHS3 compliant, meeting the latest EU RoHS requirements without exemptions.
