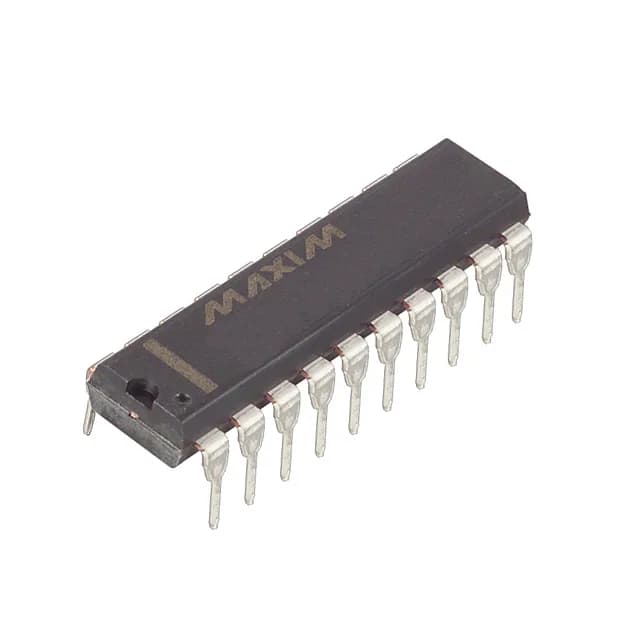

Analog Devices MAX7645ACPP+ — Signal Isolation
Analog Devices

MAX7645ACPP+ 12-Bit DAC, 1µs Settling, 20-PDIP

MPNMAX7645ACPP+
End of Life

Maxim MAX7645ACPP+, 12-bit multiplying DAC, current-unbuffered output, R-2R architecture, 1µs settling time, parallel interface, 20-pin DIP package, 0°C to 70°C.

$19.32Ref. price · indicative, final on quote
MAX7645ACPP+ datasheet
Packaging20-DIP (0.300", 7.62mm)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX7645ACPP+ Technical Specifications
ParameterValue
Output typeCurrent - Unbuffered
Mounting typeThrough Hole
Reference typeExternal
Voltage - supply, analog14.25V ~ 15.75V
Voltage - supply, digital14.25V ~ 15.75V
InterfaceParallel
Operating temperature0°C ~ 70°C
PackageTube
ArchitectureR-2R
INL (DNL)±0.5 (Max), ±1 (Max)
Settling time1µs
Number of bits12
Case20-DIP (0.300\", 7.62mm)
Differential outputNo
Number of d (A converters)1

Product details

12-bit multiplying DAC in a through-hole DIP

The Maxim MAX7645ACPP+ is a 12-bit multiplying digital-to-analog converter with a current-unbuffered output and an R-2R ladder architecture. It settles to within ±0.5 LSB INL in 1 µs.

Settling time and linearity — what they mean for your loop

The 1 µs settling time to ±0.5 LSB (max INL) defines the maximum update rate: you can clock new codes at roughly 1 MHz before the output has settled to 12-bit accuracy.

Package and mounting — through-hole, not SMD

The 20-pin PDIP (0.300" body width) is a through-hole package. It plugs into a standard DIP socket or solders directly into plated-through holes on a PCB.

Frequently asked questions

Is MAX7645ACPP+ obsolete or active?

Active. The lifecycle status is current production with no end-of-life notice. The part is ROHS3 compliant and available to order.

What is the settling time of MAX7645ACPP+?

1 µs to ±0.5 LSB (max INL). That is the time from a parallel code update to the output settling within 12-bit accuracy.

What is the pinout of MAX7645ACPP+?

The MAX7645ACPP+ uses a standard 20-pin DIP pinout. The datasheet provides the full pin assignment; key pins include the 12-bit parallel data inputs (DB11–DB0), chip select (CS), write (WR), reference input (REF), current output (IOUT), and supply (VDD, DGND, AGND).

Where can I buy MAX7645ACPP+?

This part is sourced and quoted to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

What are alternatives to MAX7645ACPP+?

Within the same 12-bit, parallel-interface, current-output DAC family, the MAX7645 series includes multiple temperature-grade and package variants. The MAX7645BCPP+ offers ±1 LSB INL (max) versus the ±0.5 LSB of the 'A' grade. For an SMD footprint, the MAX7645AEPP+ is the same die in a 20-pin SSOP. No direct pin-compatible second source from another manufacturer is listed in the available cross-reference data.
