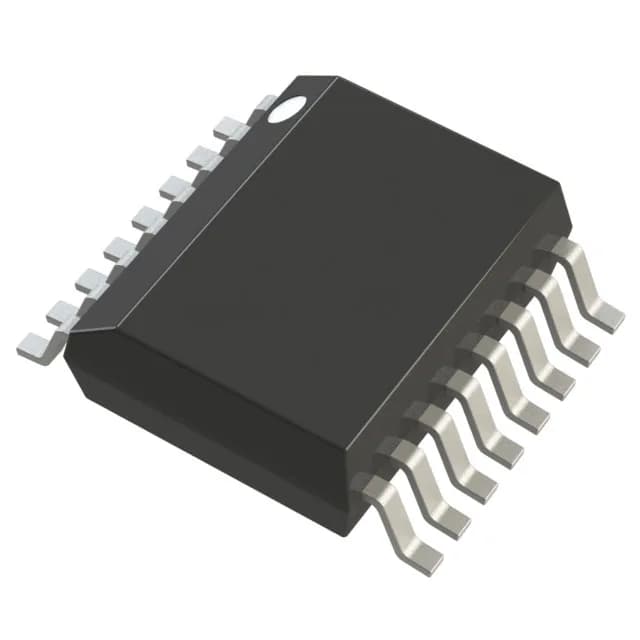

MAX14131FAEE+ Digital Isolator, 1000Vrms, 150Mbps, 4-Ch

MPNMAX14131FAEE+
End of Life

Maxim Integrated MAX14131FAEE+ general-purpose digital isolator, capacitive coupling, 4 unidirectional channels, 150Mbps data rate, 1000Vrms isolation, 1.71V–5.5V supply, -40°C to 125°C, 16-QSOP package, tube.

$7.81Ref. price · indicative, final on quote
MAX14131FAEE+ datasheet
Packaging16-SSOP (0.154", 3.90mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX14131FAEE+ Technical Specifications
ParameterValue
TypeGeneral Purpose
Channel typeUnidirectional
Mounting typeSurface Mount
Voltage1.71V ~ 5.5V
Voltage - isolation1000Vrms
Isolated powerNo
Operating temperature-40°C ~ 125°C
Pulse width distortion1ns
PackageTube
Data rate150Mbps
TechnologyCapacitive Coupling
Case16-SSOP (0.154\", 3.90mm Width)
Number of channels4
Inputs - side 1/Side 23/1
Rise (Fall time)2ns, 2ns
Propagation delay tpLH (tpHL)7.5ns, 7.4ns
Common mode transient immunity25kV/µs (Typ)

Product details

1000Vrms isolation and 150Mbps — what that means for the BOM

The 1000Vrms isolation rating suits reinforced isolation for industrial equipment with basic insulation requirements. The 150Mbps data rate keeps up with high-speed SPI clocks and fast UART links without pulse-width distortion exceeding 1ns.

Lifecycle and sourcing reality

The MAX14131FAEE+ is listed as Active in production — no end-of-life notice, no last-time-buy window. It's ROHS3 compliant, so it passes EU material restrictions for new builds. Sourced through independent distribution and quoted to order against an RFQ.

Frequently asked questions

Can MAX14131FAEE+ be used for SPI isolation?

Yes, the 150Mbps data rate and 7.5ns propagation delay are fast enough for SPI clock rates up to 50–75 MHz, and the unidirectional channel configuration (3 inputs on side 1, 1 on side 2) matches typical SPI signals (SCLK, MOSI, MISO, CS).
