What this 8051 chip brings to a control board

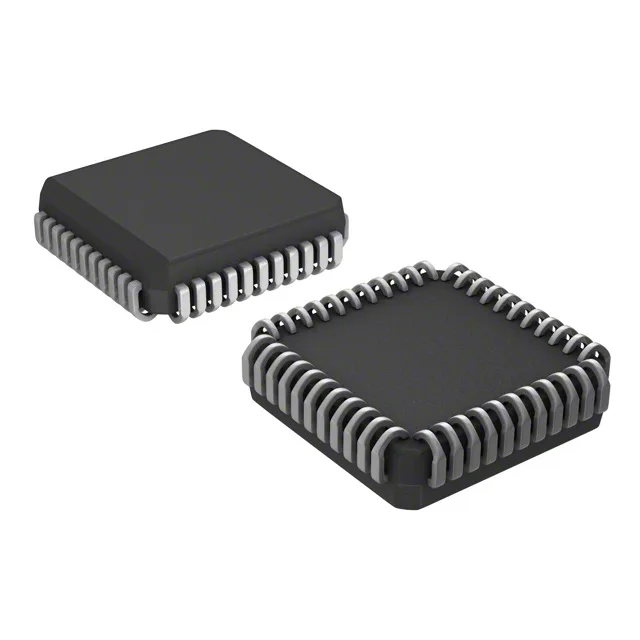

The DS89C430-QNL+ is an 8-bit 8051-core microcontroller running at 33 MHz, with 16 KB of on-chip flash and 1K x 8 of RAM. The 44-PLCC package (16.59x16.59 mm) is socket-friendly — you can swap this chip in the field with a PLCC extractor and a fresh part from the kit, no hot-air station needed. That matters when a line is down and the repair happens on a customer site, not a lab bench.
Memory and I/O for a real embedded job
The 1K x 8 SRAM is tight but workable for register-based code; if your state machine needs a large lookup table or a circular buffer, you will be budgeting bytes. 32 I/O lines give you room for a parallel LCD, a keypad matrix, or a bank of optocoupler inputs, all while keeping a UART and a serial I/O channel free for debug or fieldbus communication. The external bus interface (EBI/EMI) lets you map external memory or peripherals into the 8051 address space if the on-chip resources run short.
Built-in watchdog and power-fail reset
The on-chip watchdog timer (WDT) and power-fail reset are the kind of peripherals that save a board from locking up in a brownout or a noisy environment. The power-fail reset generates an interrupt before the supply actually drops out of regulation, giving the firmware time to save critical state to flash. In an industrial panel with 24 VDC feeding a 5 V regulator, that is a real reliability feature.
