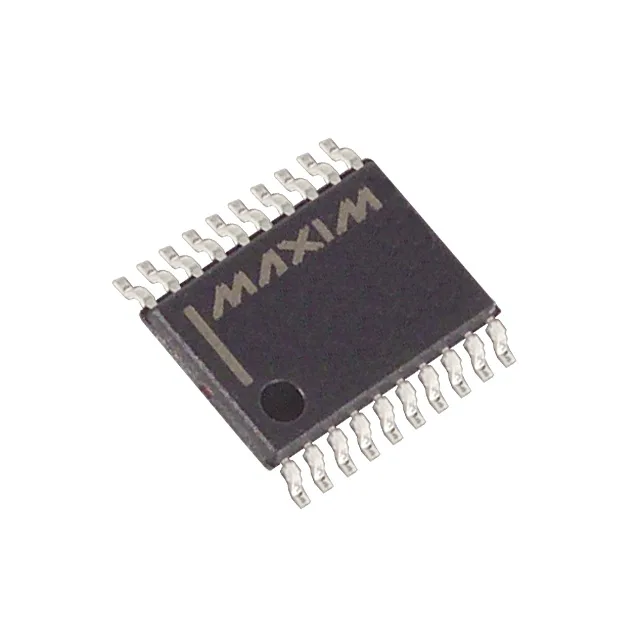

DS1343E-3+ RTC Clock/Calendar SPI 20-TSSOP Analog Devices

MPNDS1343E-3+
End of Life

Analog Devices DS1343E-3+ Clock/Calendar RTC, SPI interface, 20-TSSOP, Tube, 96B NVRAM, Alarm, Leap Year, Trickle Charger.

$6.58Ref. price · indicative, final on quote
Packaging20-TSSOP (0.173", 4.40mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

DS1343E-3+ Technical Specifications
ParameterValue
TypeClock/Calendar
Mounting typeSurface Mount
Voltage2.7V ~ 5.5V
Voltage - supply, battery1.3V ~ 5.5V
InterfaceSPI
Operating temperature-40°C ~ 85°C
PackageTube
FeaturesAlarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger
Date formatYY-MM-DD-dd
Memory size96B
Time formatHH:MM:SS (12/24 hr)
Case20-TSSOP (0.173\", 4.40mm Width)

Product details

RTC with integrated NVRAM and trickle-charge support
