Analog Devices DS1337C# — Discrete Semiconductors
Analog Devices

Analog Devices DS1337C# RTC Clock/Calendar, I2C, 16-SOIC

MPNDS1337C#
End of Life

Analog Devices DS1337C# Clock/Calendar RTC, I2C 2-Wire Serial Interface, 16-SOIC (0.295", 7.50mm Width), 1.8V-5.5V Supply, -40°C to 85°C, Tube.

$7.02Ref. price · indicative, final on quote
Packaging16-SOIC (0.295", 7.50mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

DS1337C# Technical Specifications
ParameterValue
TypeClock/Calendar
Mounting typeSurface Mount
Voltage1.8V ~ 5.5V
Current - timekeeping0.6µA @ 1.3V ~ 1.8V
InterfaceI²C, 2-Wire Serial
Operating temperature-40°C ~ 85°C
PackageTube
FeaturesAlarm, Leap Year, Square Wave Output
Date formatYY-MM-DD-dd
Time formatHH:MM:SS (12/24 hr)
Case16-SOIC (0.295\", 7.50mm Width)

Product details

I2C RTC with 0.6µA timekeeping

The DS1337C# is an I2C real-time clock/calendar from Analog Devices that tracks time in HH:MM:SS (12/24 hr) and date in YY-MM-DD-dd format, with integrated leap-year compensation and a programmable square-wave output. It draws just 0.6µA max during timekeeping at 1.3V–1.8V, so it adds negligible drain to a battery-backed design — the RTC itself won't be the weak link in a coin-cell lifetime budget.

Package and compliance

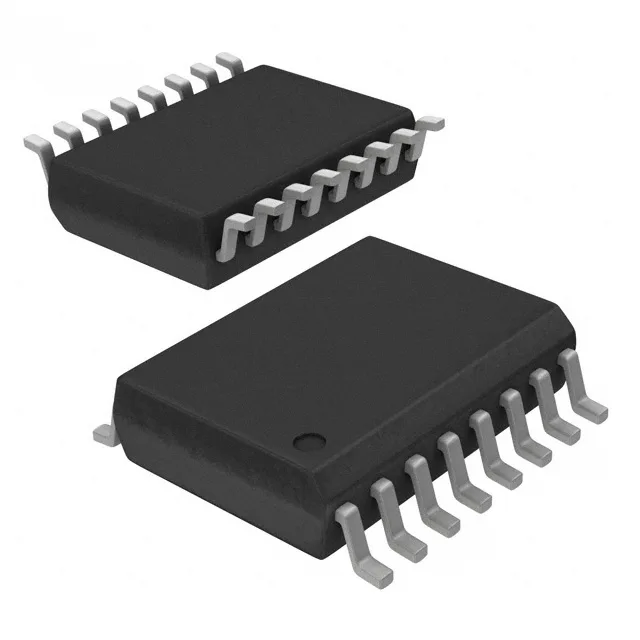

Housed in a 16-SOIC wide-body package (7.50 mm width), surface-mount, supplied in tube format.

Frequently asked questions

What is the DS1337C#'s timekeeping current draw?

Maximum timekeeping current is 0.6µA at 1.3V–1.8V supply, making it suitable for battery-backed applications where every microamp matters.
